T3035 Compact Tractor – 35 HP, 2,200 lb Lift Capacity for Versatile Property Work
The T3035 compact tractor delivers the perfect balance of power, versatility, and size for homeowners, landowners, and small farms. With a 35 horsepower engine and an impressive 2,200 lb lift capacity, this tractor is built to handle demanding tasks both on and off the field.

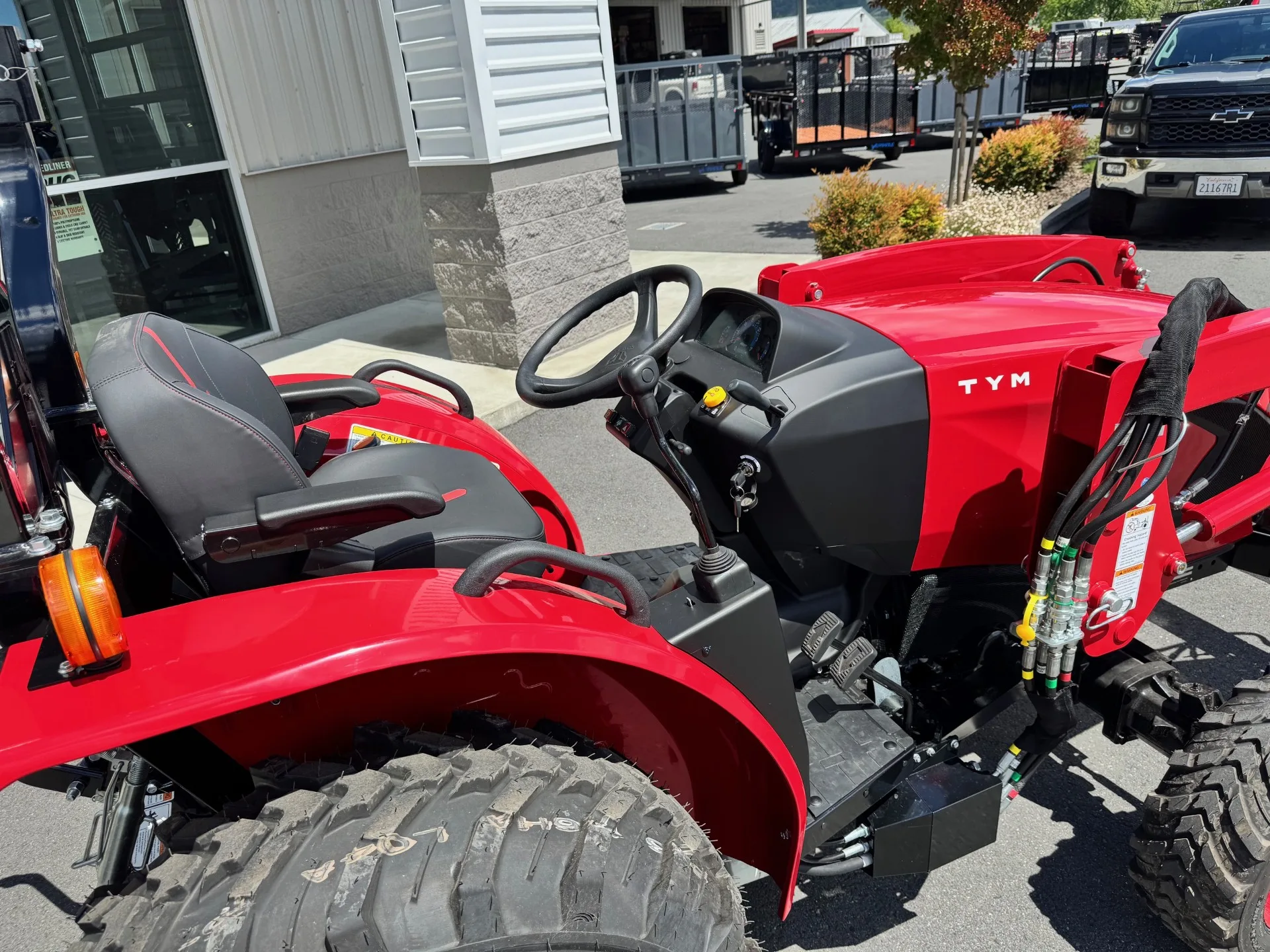

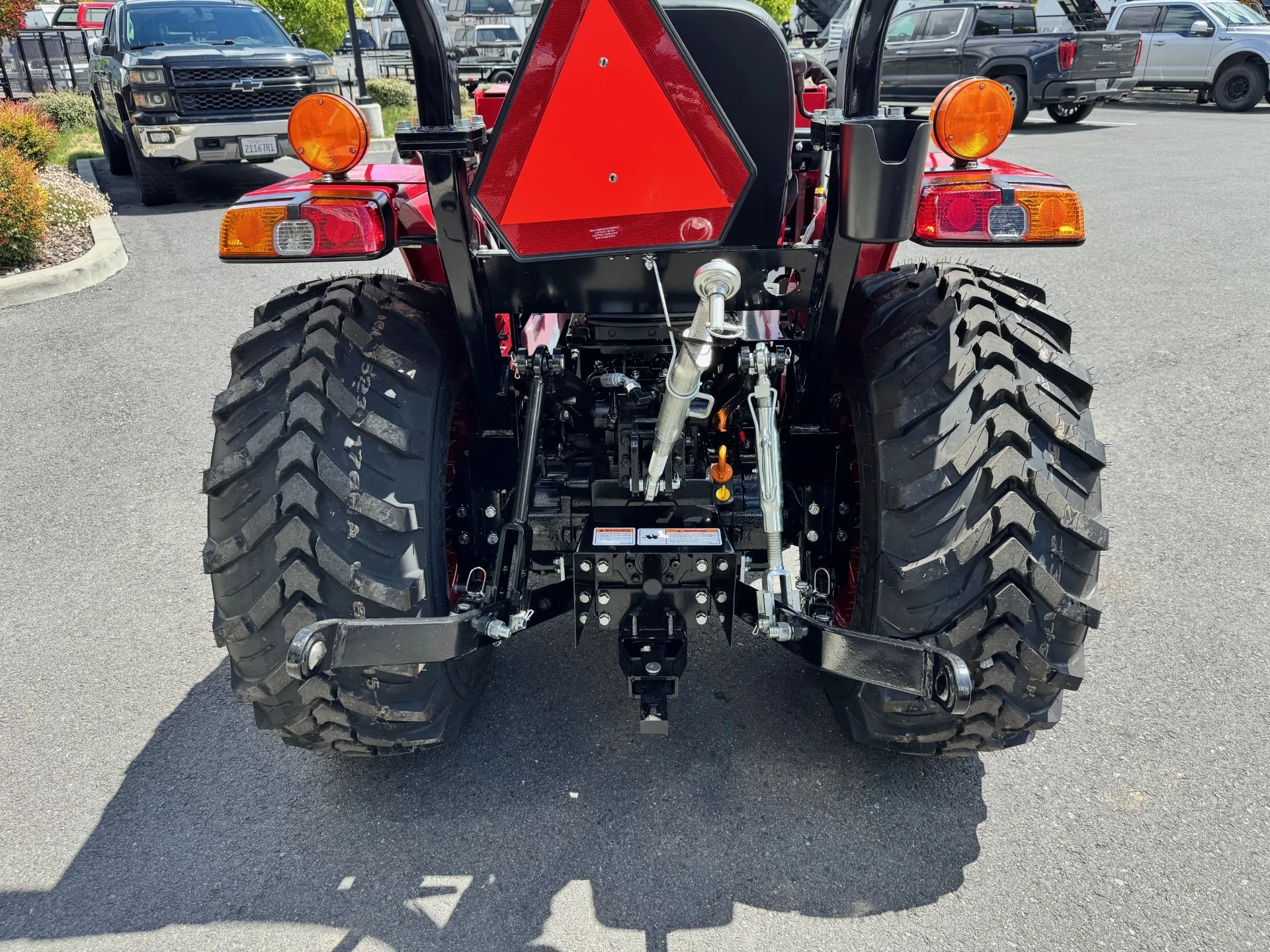

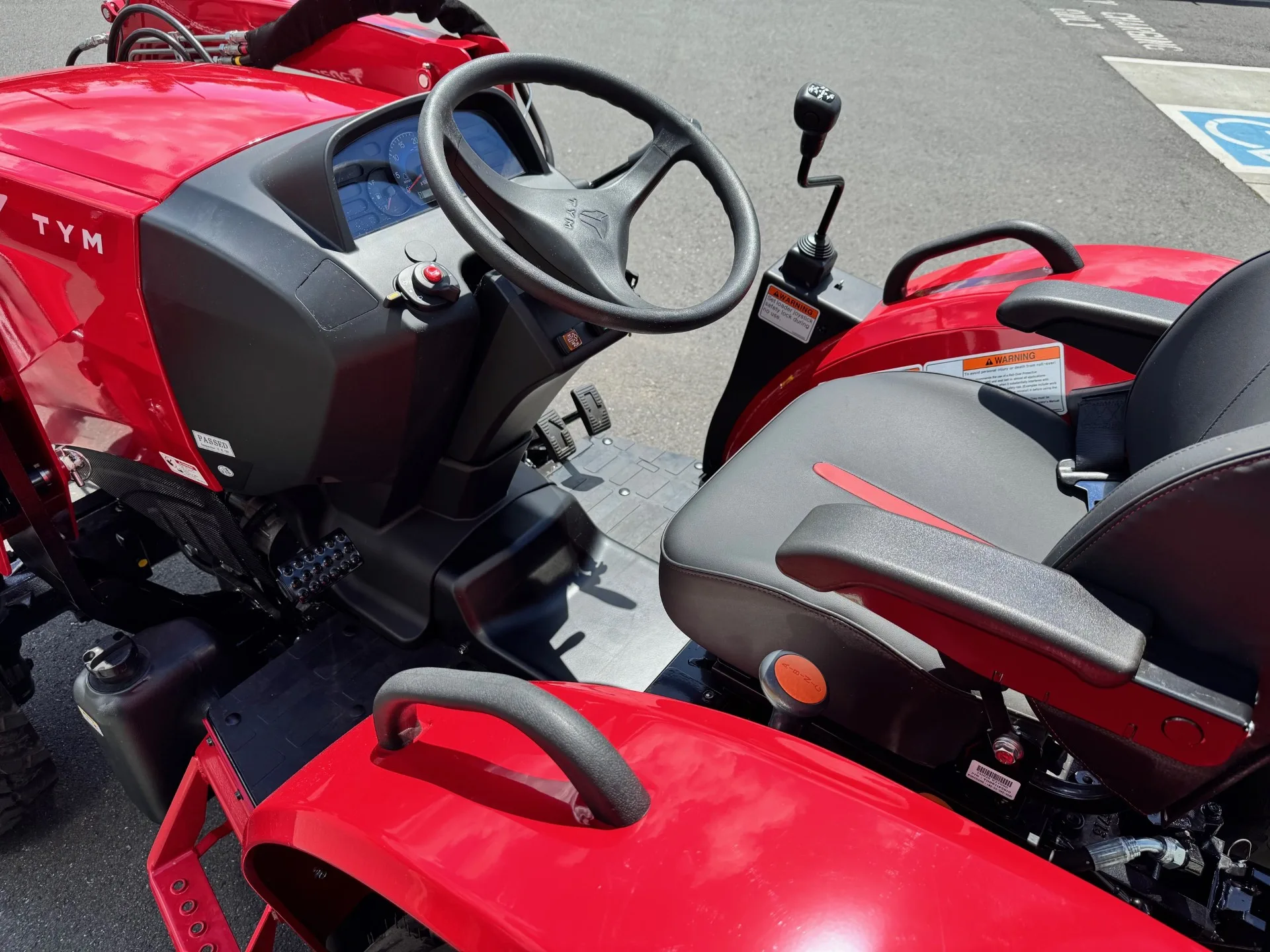

Designed with enhanced lifting performance in a compact frame, the T3035 maximizes productivity without sacrificing maneuverability. Its Tier IV-certified engine ensures efficient, low-emission operation, while the third-function-ready rear hitch expands your ability to run multiple attachments with ease. The ergonomically designed operator platform provides all-day comfort and control, making long jobs more manageable.

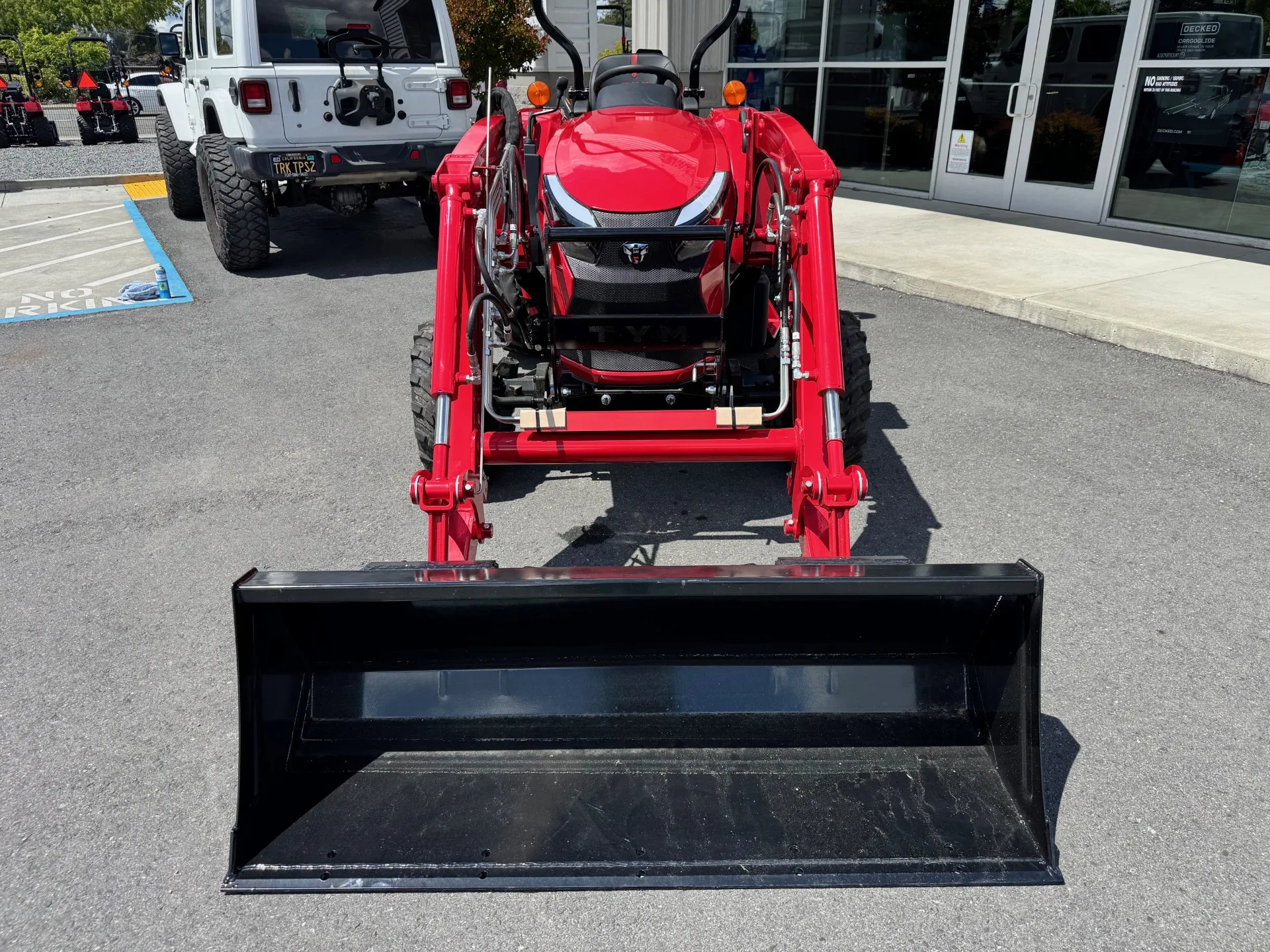

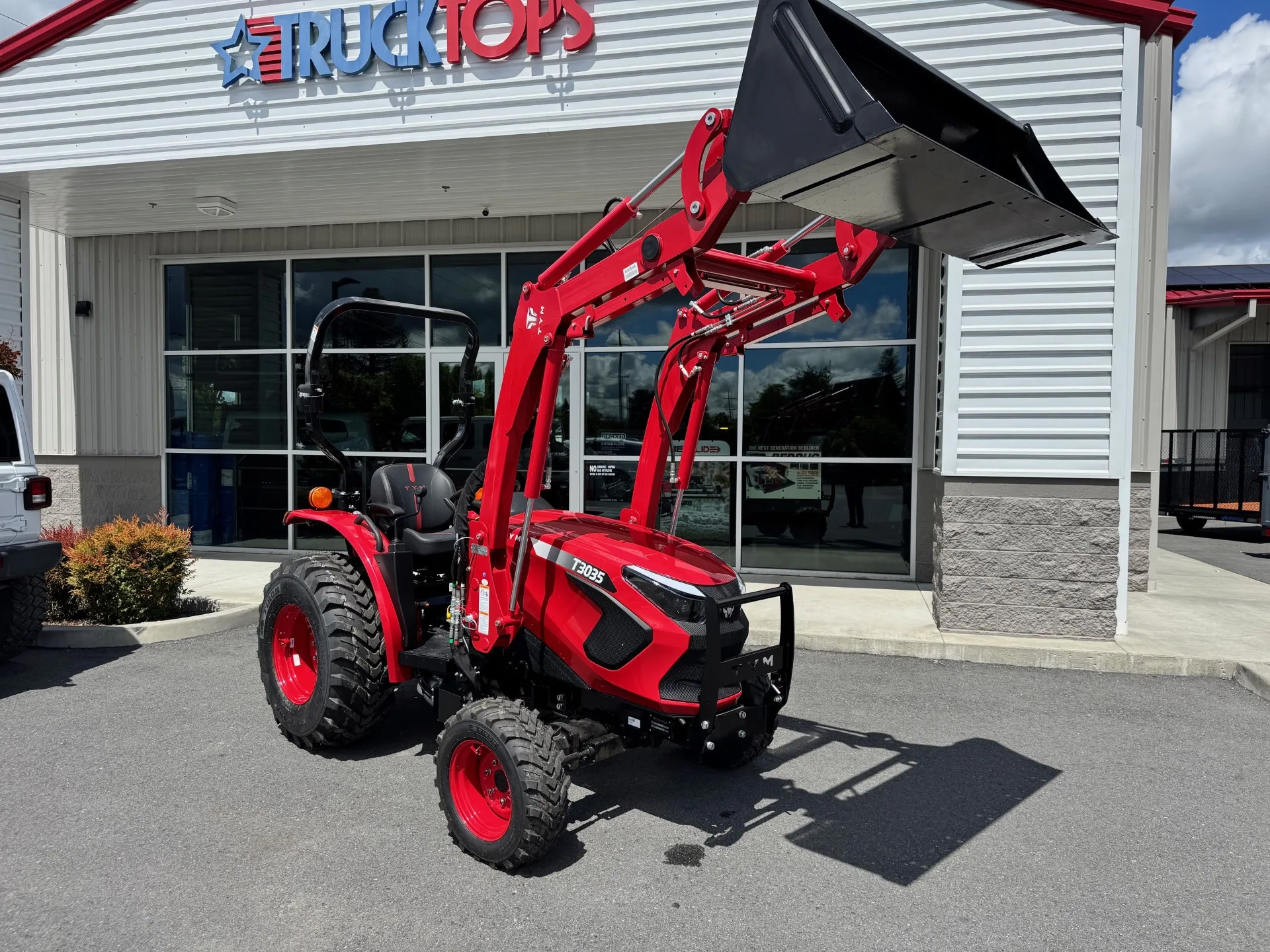

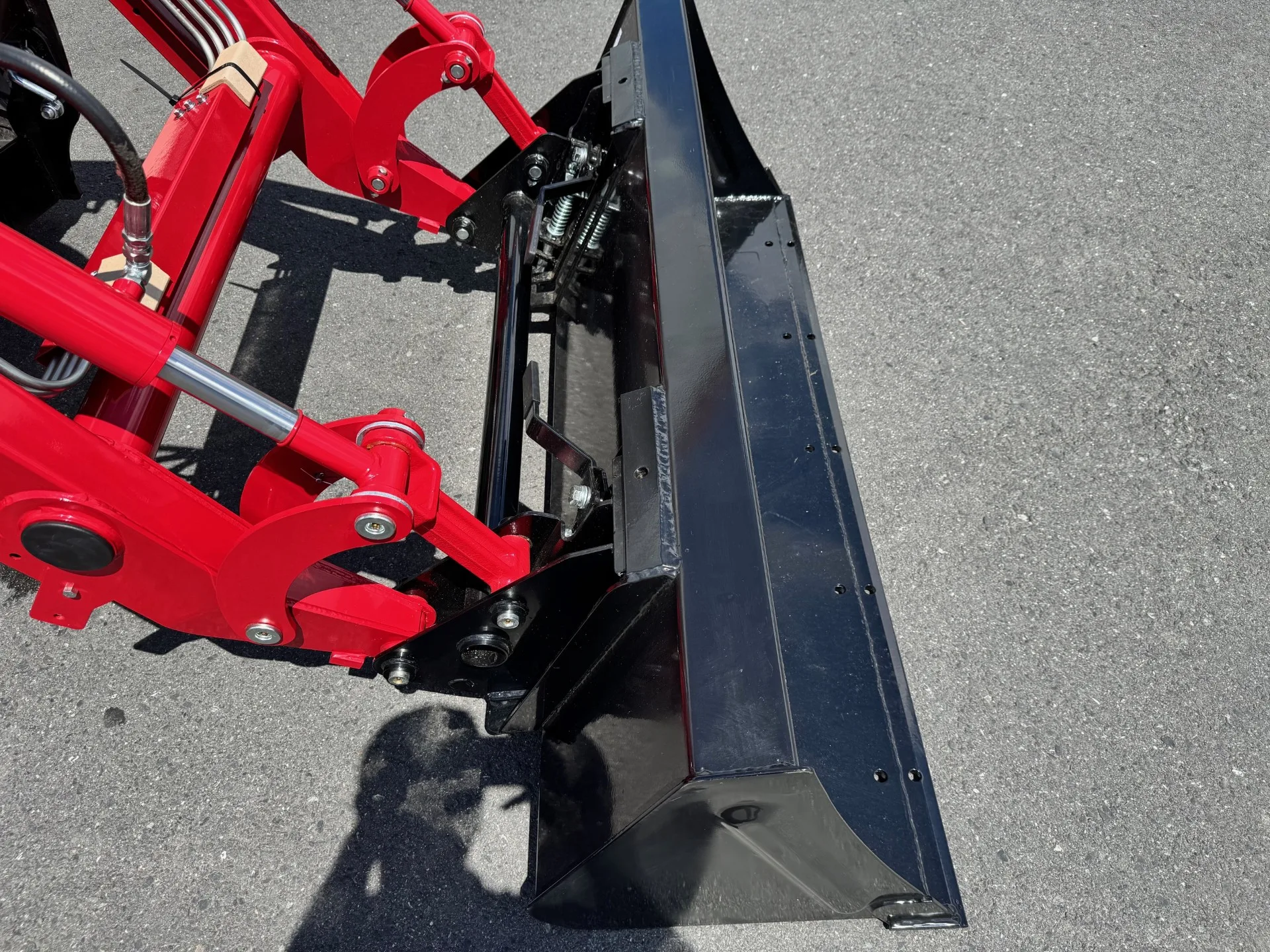

Whether you’re maintaining a lawn or acreage, building a home garden, tackling yard work, or managing a small hobby farm, the T3035 is ready for the job. Its compatibility with a front-end loader, mid-mount mower, and rear hitch attachments allows you to take on more tasks in less time.
From landscaping to light construction, the T3035 compact utility tractor is your reliable solution for getting more done efficiently.
Overview
|
Engine Manufacturer: |
TYM T1700N6 |
|
Engine power: |
35 hp |
|
Rated engine speed: |
2100 rpm |
|
Displacement: |
104.5 cu. in. |
|
No. of speeds: |
T3035H: 3-Range |
|
Hitch lift capacity: |
3307 lb |
|
PTO rear: |
540 rpm |
|
Fuel tank: |
8.7 gal |
|
Overall length with 3-point hitch: |
120.9 in. |
|
Overall width: |
56.3 in. |
|
Wheelbase: |
65.7 in. |
|
Height to top of ROPS: |
97.3 in. |
|
Min. ground clearance: |
14.4 in. |
|
Weight with ROPS |
2969.6 lb |
|
Lift Capacity |
2200 lb |
Engine
|
Engine Manufacturer |
TYM T1700N6 |
|
Type |
Natural aspiration |
|
Engine power |
35 hp |
|
PTO power |
30 hp |
|
Rated engine speed |
2100 rpm |
|
No. of cylinders |
3 |
|
Displacement |
104.5 cu. in. |
|
Air cleaner |
Dry element |
|
Alternator |
12V, 50A |
|
Fuel system |
IDI |
Hydraulic System
|
Pump type |
Dual gear pump |
|
Implement flow |
7.5 gpm |
|
Steering flow |
4.0 gpm |
|
Total flow |
11.5 gpm |
|
Category, 3-point hitch |
I |
|
Hitch lift capacity |
3307 lb |
|
Hitch lift capacity at 24 inches behind link ends |
2425 lb |
|
Lift control type |
Position |
|
No. of standard remote valves |
Loader: 4 / Rear: 0 |
Powertrain
|
Transmission type |
T3035H: HST |
|
No. of speeds |
T3035H: 3-Range |
|
Max. traveling speed |
T3035H: 18.8 mph |
|
Brakes |
Wet, Multi disc |
|
Steering |
Hydrostatic |
|
Clutch |
T3035H: N/A |
PTO
|
PTO type |
Independent |
|
PTO control |
Electric/Hydro |
|
PTO rear |
540 rpm |
Capacities
|
Fuel tank |
8.7 gal |
|
Coolant |
5.3 qt |
|
Crankcase |
4.5 qt |
|
Transmission/Hydraulics system |
9.8 ga |
|
Front axle |
6.8 qt |
