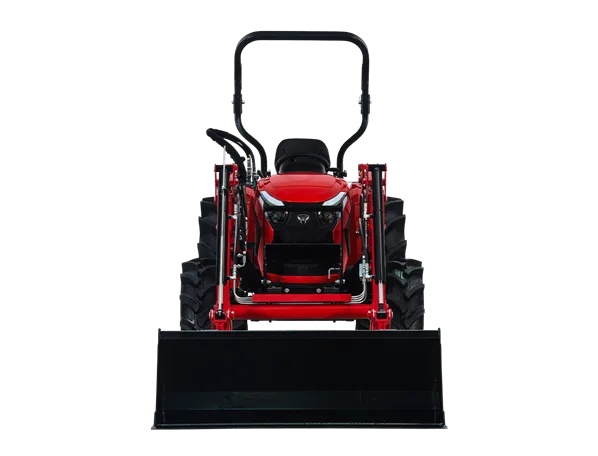

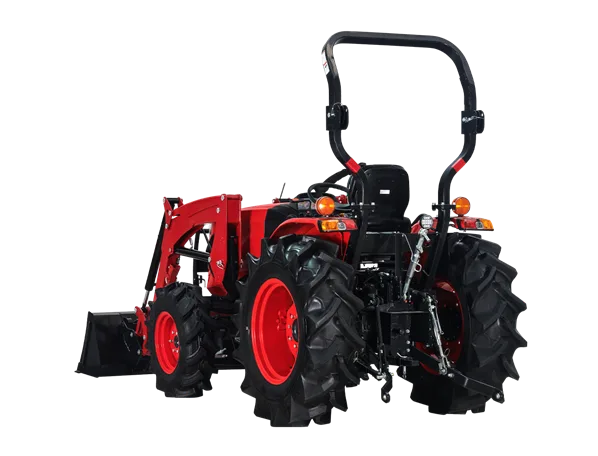

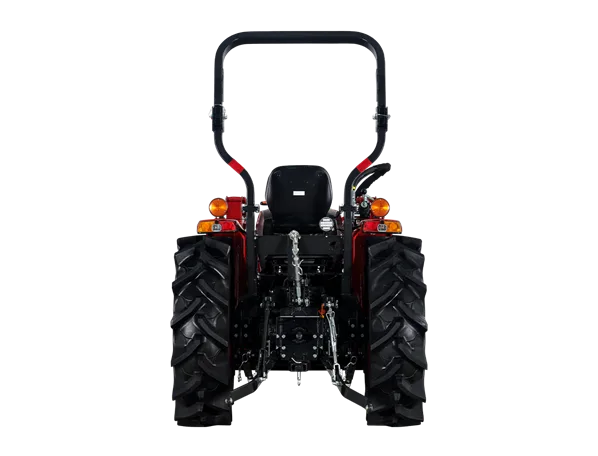

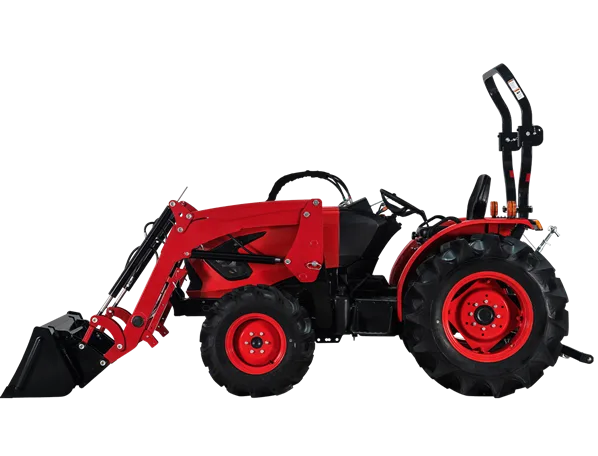

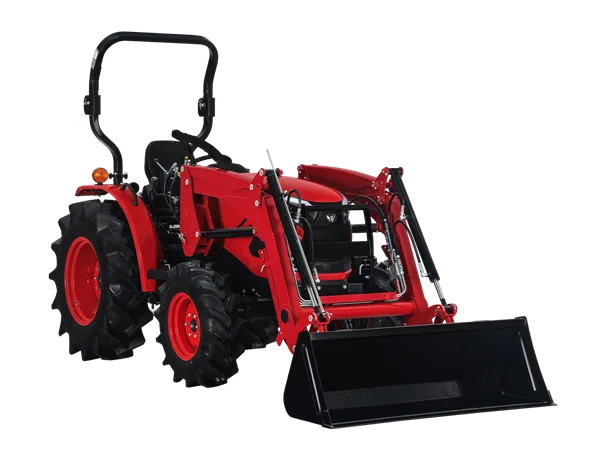

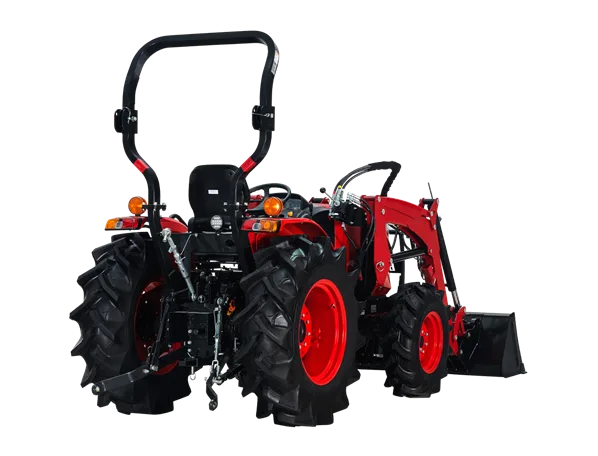

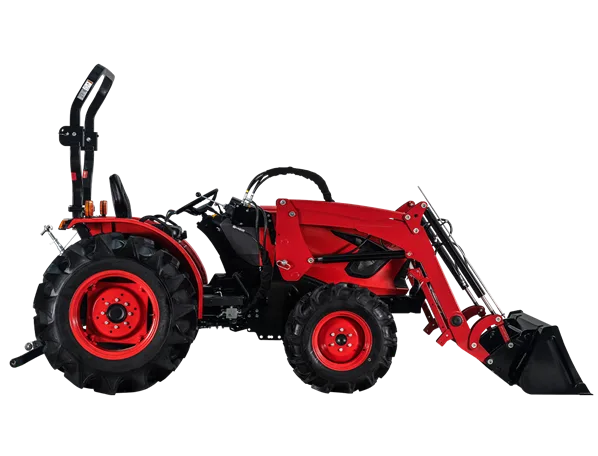

TYM 3515H Tractor

Product Help Tractor Credit Application

Overview

Cash/Check Price – $26,555 – Financing Available

Includes Tractor & Quick Attach Loader

Compact enough to give you the versatility you need, and powerful enough to take on the tougher jobs on and off the field.

The tractor optimized for you and your ambitious projects. Combine 35 hp with customizable transmission, tires, and implements to give you more control at handling the jobs you need to get done.

Under the hood, a 4-cycle engine coupled with an HST or Synchro-Shuttle transmission powers your tractor through the toughest tasks. The tractor’s high ground clearance makes operating on rocky or uneven terrain easier, and optional LED work lights and tires allow you to customize the tractor for the job.

Equipped with a naturally aspirated engine designed and manufactured by TYM, the tractor is designed to be eco-friendly and fuel-efficient but makes no compromise on performance and reliability.

The tilt steering wheel allows operators to adjust the position of the steering wheel for a more comfortable driving experience.

Safety is always first. The PTO switch ensures the safe operation of all tractor attachments.

Full front & rear LED work lights facilitate safer operations, particularly in low visibility conditions such as rainy or dusty work environments.

The differential lock system activated with easily accessible levers provides enhanced traction in slippery work environments. 52˚ turning angle makes operation in narrow areas much easier.

The water-separating fuel filter prevents foreign substances from entering the fuel, ensuring better engine start ability and preventing damage to the machine.

Engine

Engine manufacturerTYM A1700N2 IDI
TypeNatural Aspiration
Gross engine power35 hp | 26.2 kW
PTO power30 hp | 22.5 kW
Rated engine speed2600 rpm
No. of cylinders3
Displacement104.5 cu. in.
Air cleanerDry Element
Alternator12V, 50A
Fuel systemIDI

Powertrain

Transmission typeHST
No. of speeds3-Range
Max. traveling speed18.8 mph
BrakesWet, Multi-disc
SteeringHydrostatic
ClutchNo

Hydraulic System

Pump typeSingle Gear Pump
Implement flow4.3 gpm
Steering flow8 gpm
Total flow12.3 gpm
Category, 3-point hitchI
Loader Lift Capacity2200 lb
Hitch lift capacity3306 lb
Hitch lift capacity at 24 inches behind link ends2425 lb
Lift control typePosition
No. of standard remote valvesOptional (Up to 4)

PTO

PTO typeIndependent
PTO controlWet, Multi-disc
PTO rear560 rpm

Capacities

Fuel tank7.1 gal
Coolant5.28 qt
Crankcase4.5 qt
Transmission/Hydraulics system9.8 gal
Front axle1.7 qt

Dimensions & Weights

Overall length with 3-point hitch120.9 in.
Overall width56.3 in.
Wheelbase65.7 in.
Height to top of ROPS97.3 in.
Min. ground clearance14.4 in.
Min. turn radius with brakes7.51 in
Min. turn radius without brakes8.5 ft
Weight with ROPS3163 lb

Standard Tires

R1 Agricultural – Front8-16
R1 Agricultural – Rear12.4-24
R4 Industrial – Front28×8.50-15
R4 Industrial – Rear43×16.00-20
