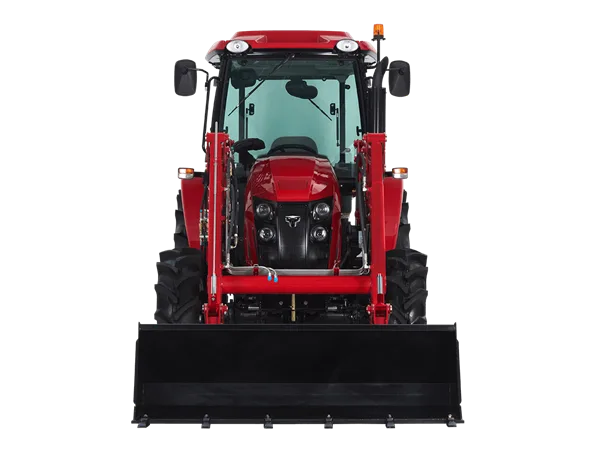

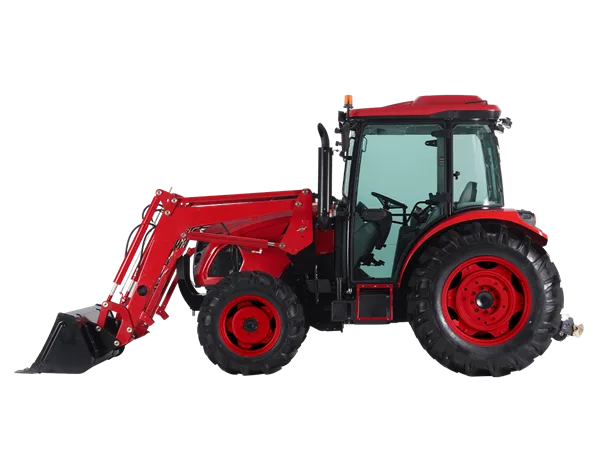

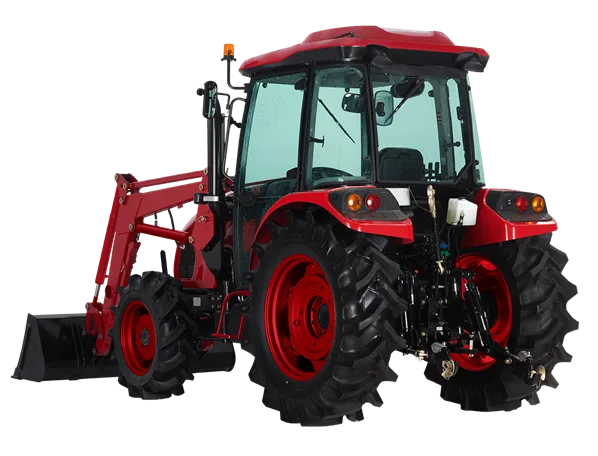

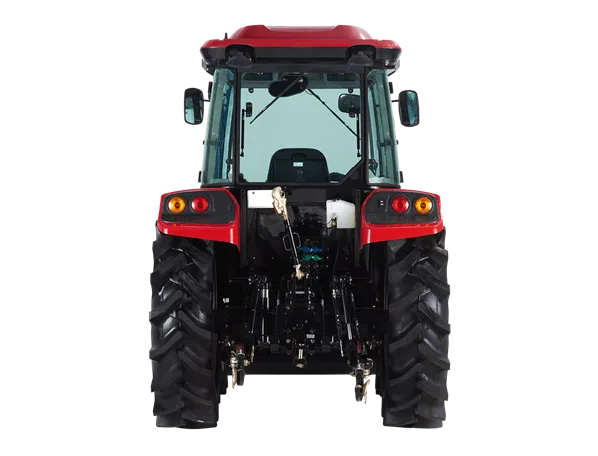

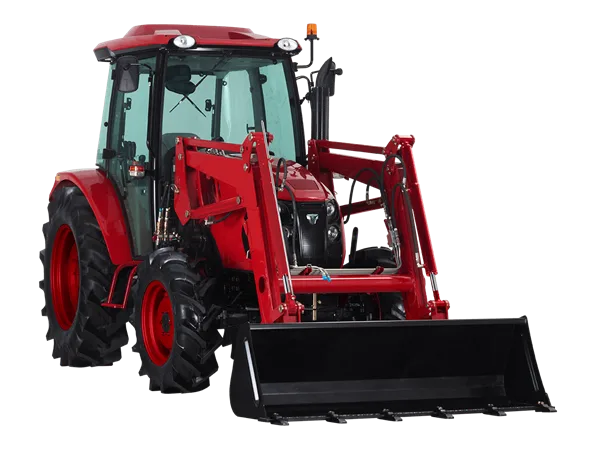

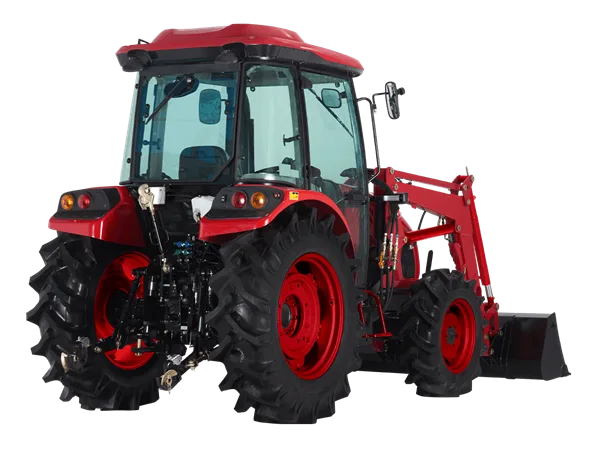

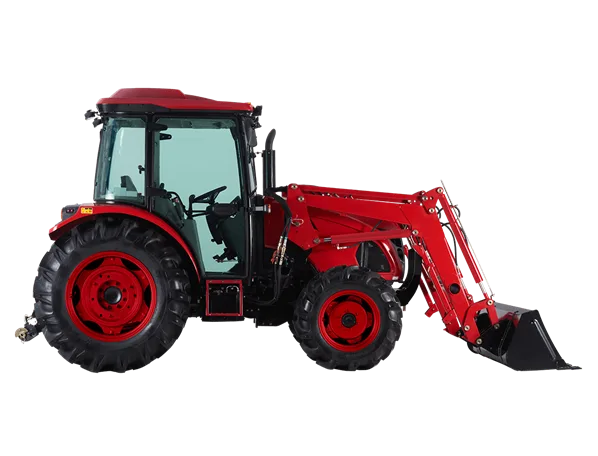

TYM T654C Cab Tractor

By TYM

SKU: 786ab8c4d7ee

Cash/Check Price – Financing Available – Includes Tractor & Quick Attach Loader. The output of the T654 suggests it’s a utility tractor and the turning radius suggests it’s a compact tractor. Offering maximized power and ease of control, this compact utility truly brings you the best of both worlds. As one of the most premium…

Available

Contact Our Locations

Product Help Tractor Credit Application
Part
Tractors and Implements, Utility Tractors
Brand
TYM
Prop 65 Warning

California Residents:  Prop 65 WARNING

Additional Information

Cash/Check Price – Financing Available –

Includes Tractor & Quick Attach Loader.

The output of the T654 suggests it’s a utility tractor and the turning radius suggests it’s a compact tractor. Offering maximized power and ease of control, this compact utility truly brings you the best of both worlds.

As one of the most premium TYM models, this tractor combines optimum dimensions, maximum maneuverability and the most advanced technology. It boasts a less than 10% drop-off in power from the front to back, powered by a high efficiency, liquid-cooled engine certified for Tier 4 standards. Combined with a large volume fuel tank, this tractor is ready to take on any time-intensive, medium-to-heavy duty applications. To enable further productivity during running, the tractor is fitted with a premium operator cabin, complete with with full AC and heating and an intuitive console comprising all major controls.

Built on precise German engineering, the Deutz engine uses Diesel Oxidation Catalysts (DOC) to convert carbon and particulate matter into less harmful emissions. This eliminates the need for regeneration cycles, minimizing maintenance requirements, downtime and the risk of repair.

The high capacity fuel tank allows drivers to take on jobs for longer periods without stopping for fuel. This is in addition to the engine, which promotes fuel-efficient operation and increases the time before a refuel.

Operators can activate core functions easily from the main console, including the PTO on/off switch. Digital displays provide alerts and diagnostic information instantly and at a glance. In addition to a spacious and ergonomic seat, the operator platform has a flat floor with a rubber mat to support comfort during entry, exit and while driving.

While providing easy entry and exit from both side doors and a host of modern amenities to maximize operator comfort, this tractor boasts greater visibility with heating and A/C as standard. This enables operators to facilitate task completion, safely and productively in warmer or colder weather.

The 6-port valve on the rear of the tractor allows implements of different functions to be controlled easily. This is particularly beneficial for applications like row crop farming and material handling, as trailers are fit with an optional hydraulic brake.

The operator cabin is equipped with a suspension seat, minimizing vibrations and impact Particularly beneficial for time-intensive jobs or work on uneven, the operator cabin features a suspension seat that keeps vibrations to a minimum and promotes comfort even during longer operations.

Engine

Engine manufacturerDeutz TCD2.9L4
TypeTurbo
Gross engine power67 hp | 50 kW
PTO power61.9 hp | 46.1 kW
Rated engine speed2200 rpm
No. of cylinders4
Displacement177 cu. in.
Air cleanerDual Dry
Alternator12V, 95A
Fuel systemCRDI

Powertrain

Transmission typeSynchro-Shuttle/HST
No. of speedsF24xR24
Max. traveling speed24.3 mph
BrakesWet Disc
SteeringHydrostatic
ClutchDry Single Plate _ M Wet Multi Plate _ PS

Hydraulic System

Pump typeDual Gear Pump
Implement flow10.3 gpm
Steering flow5.8 gpm
Total flow16.1 gpm
Category, 3-point hitchII
Hitch lift capacity4270 lb
Hitch lift capacity at 24 inches behind link ends3153 lb
Lift control typePosition/Draft/Mech
No. of standard remote valves2

PTO

PTO typeIndependent
PTO controlElectric/Hydro
PTO rear540/750/1000 rpm

Capacities

Fuel tank18.48 U.S. gal.
Coolant10.6 qt
Crankcase8.5 qt
Transmission/Hydraulics system11 qt
Front axle4.3 gal

Dimensions & Weights

R1 Agricultural – FrontFSTR 9.5 R20 TL
R1 Agricultural – RearFSTR 380/85R28 TL (14.9R28)
R4 Industrial – FrontTrac Chief 10.5/80-18 NHS TL 10PR
R4 Industrial – RearXtra Grip 18.4-24 NHS TL 8PR
