TYM T224H Tractor

Product Help Tractor Credit Application

Overview

Cash/Check Price – $14,125 – Financing Available

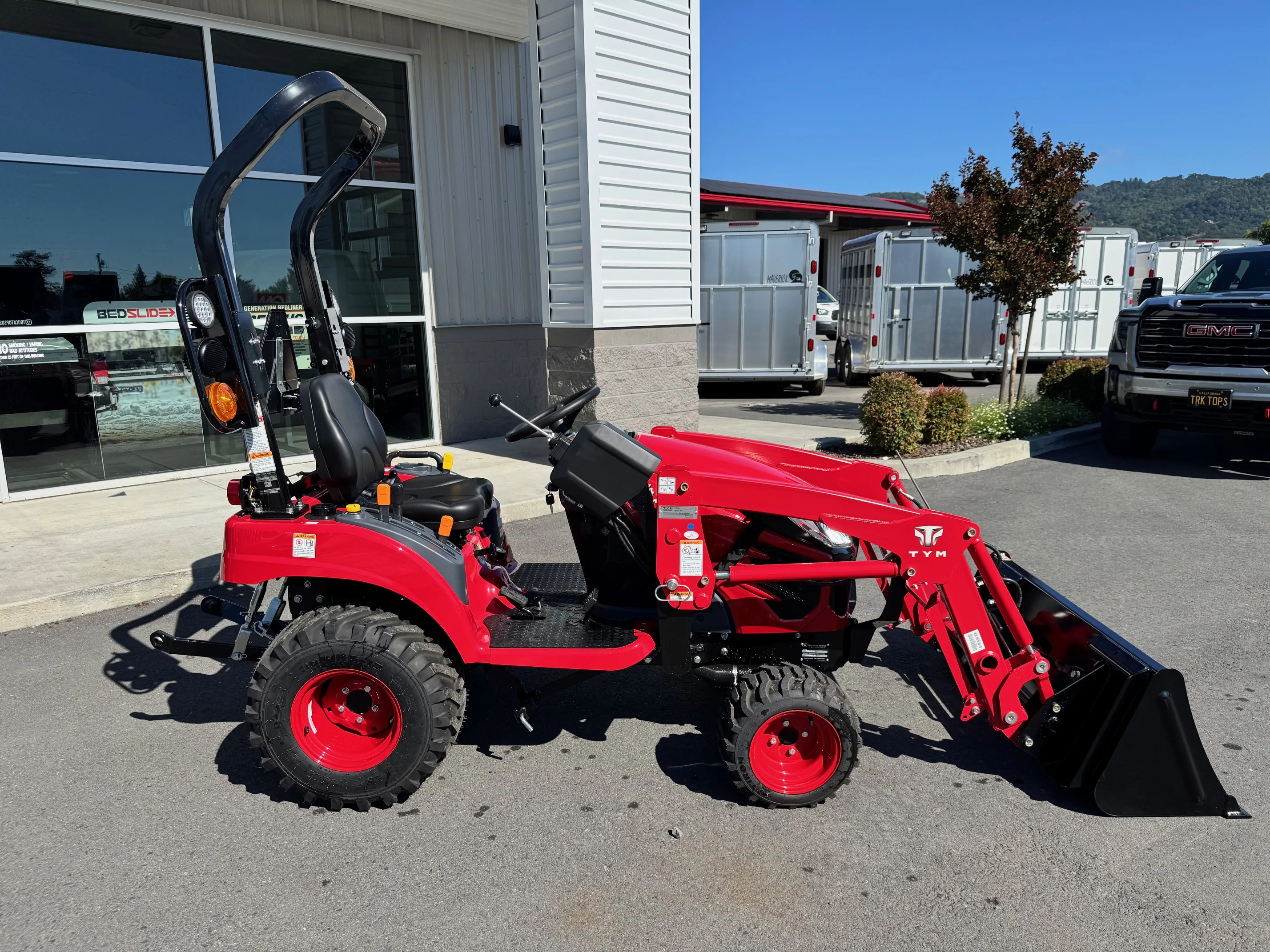

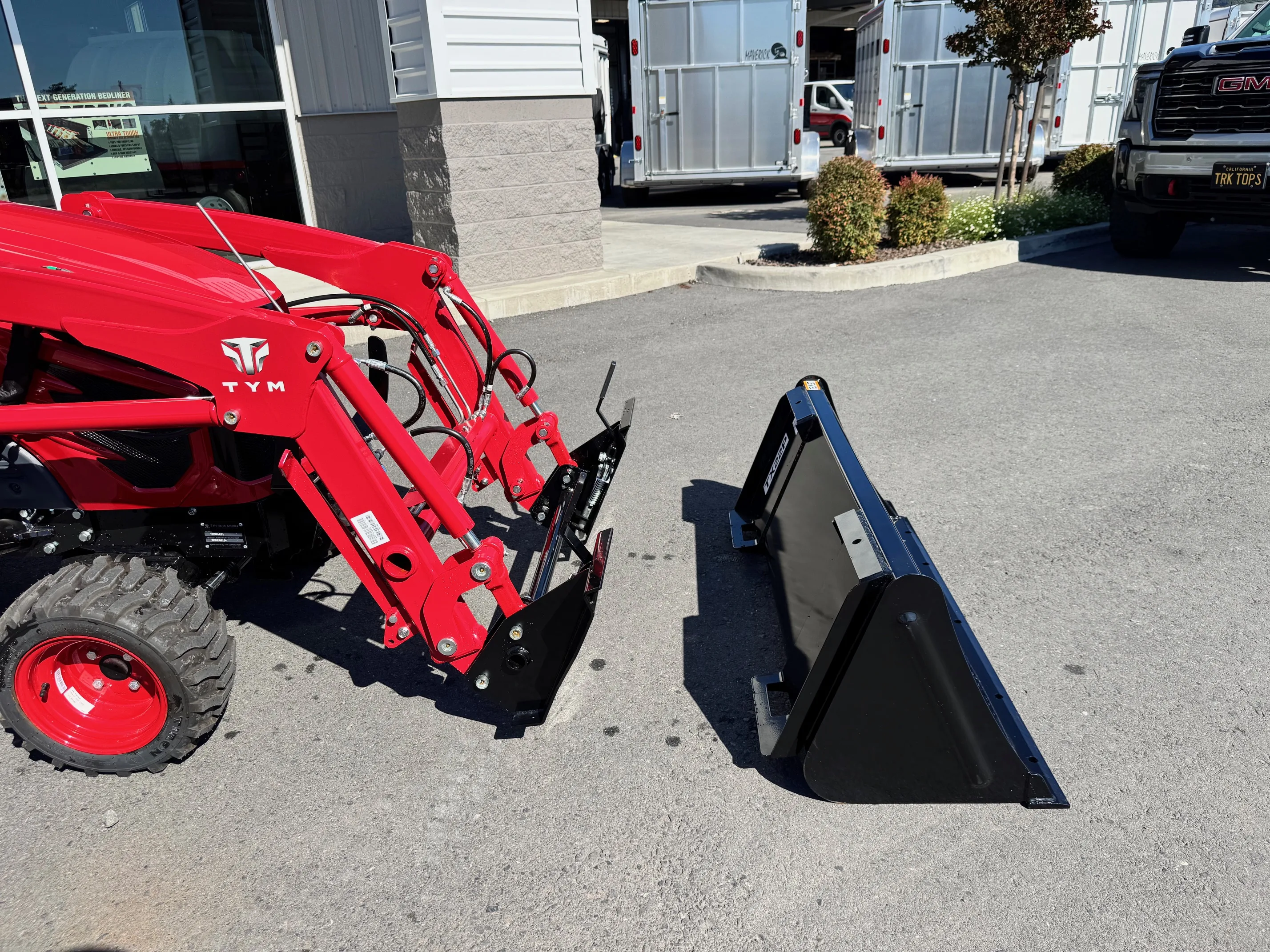

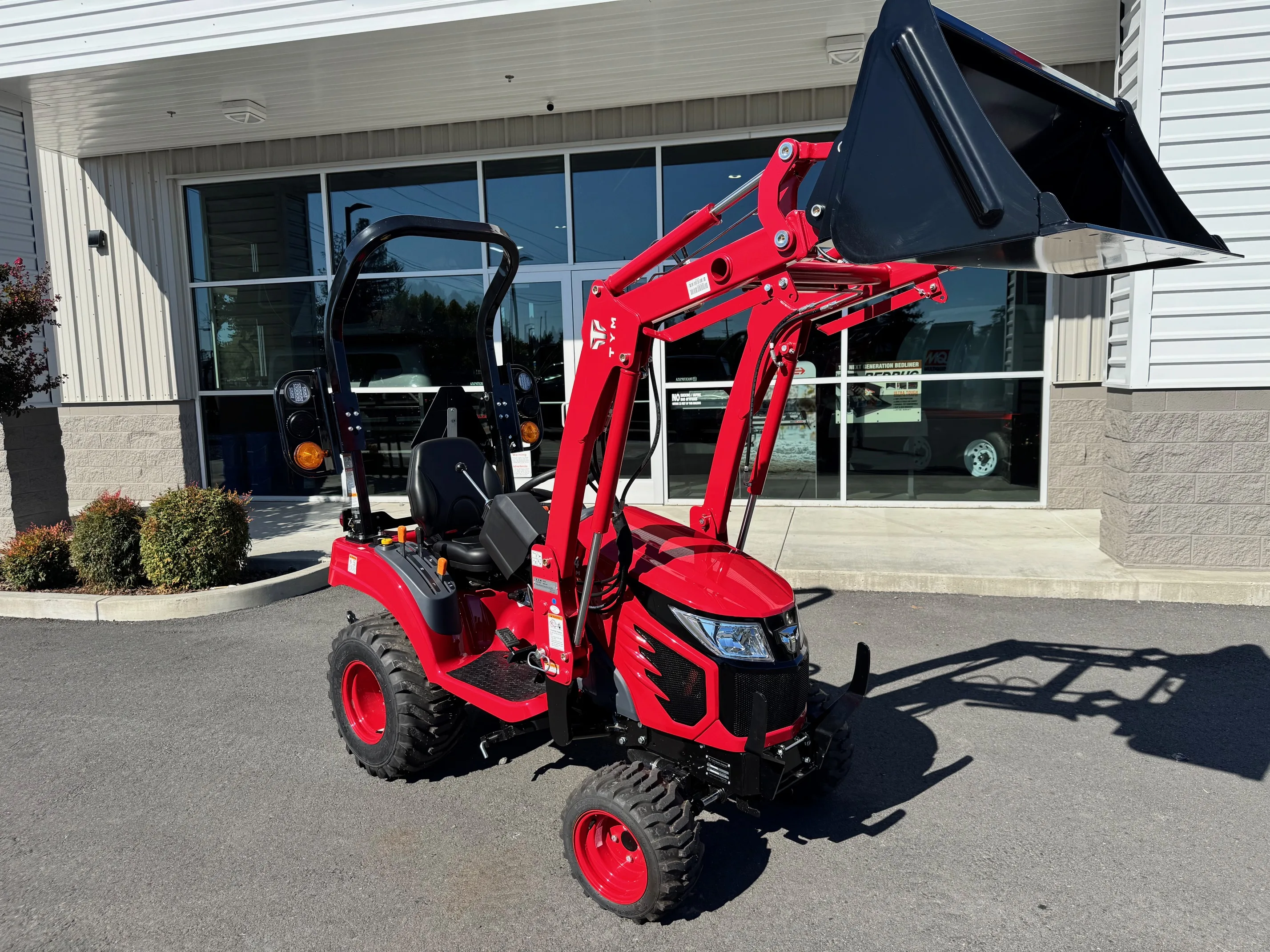

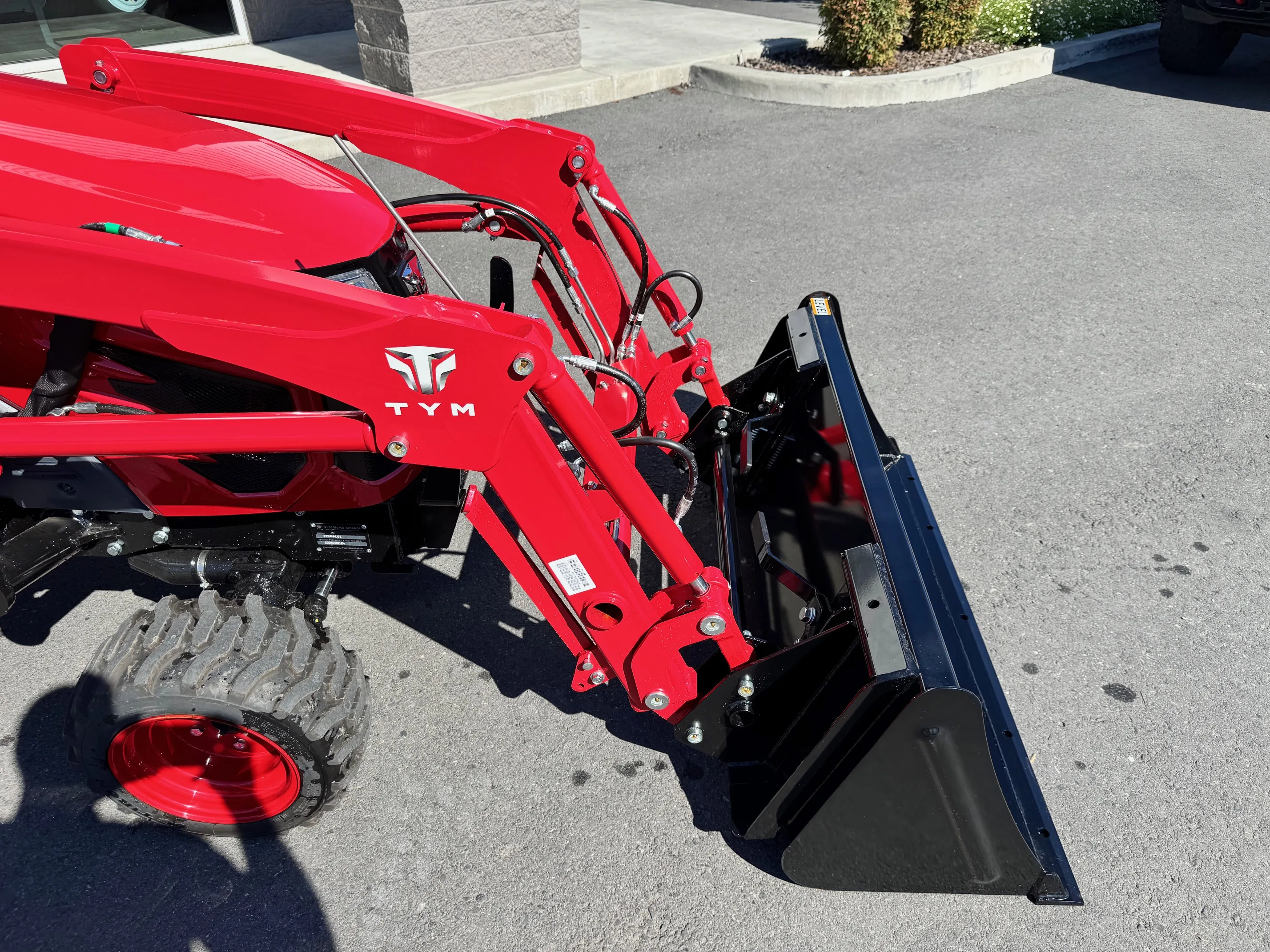

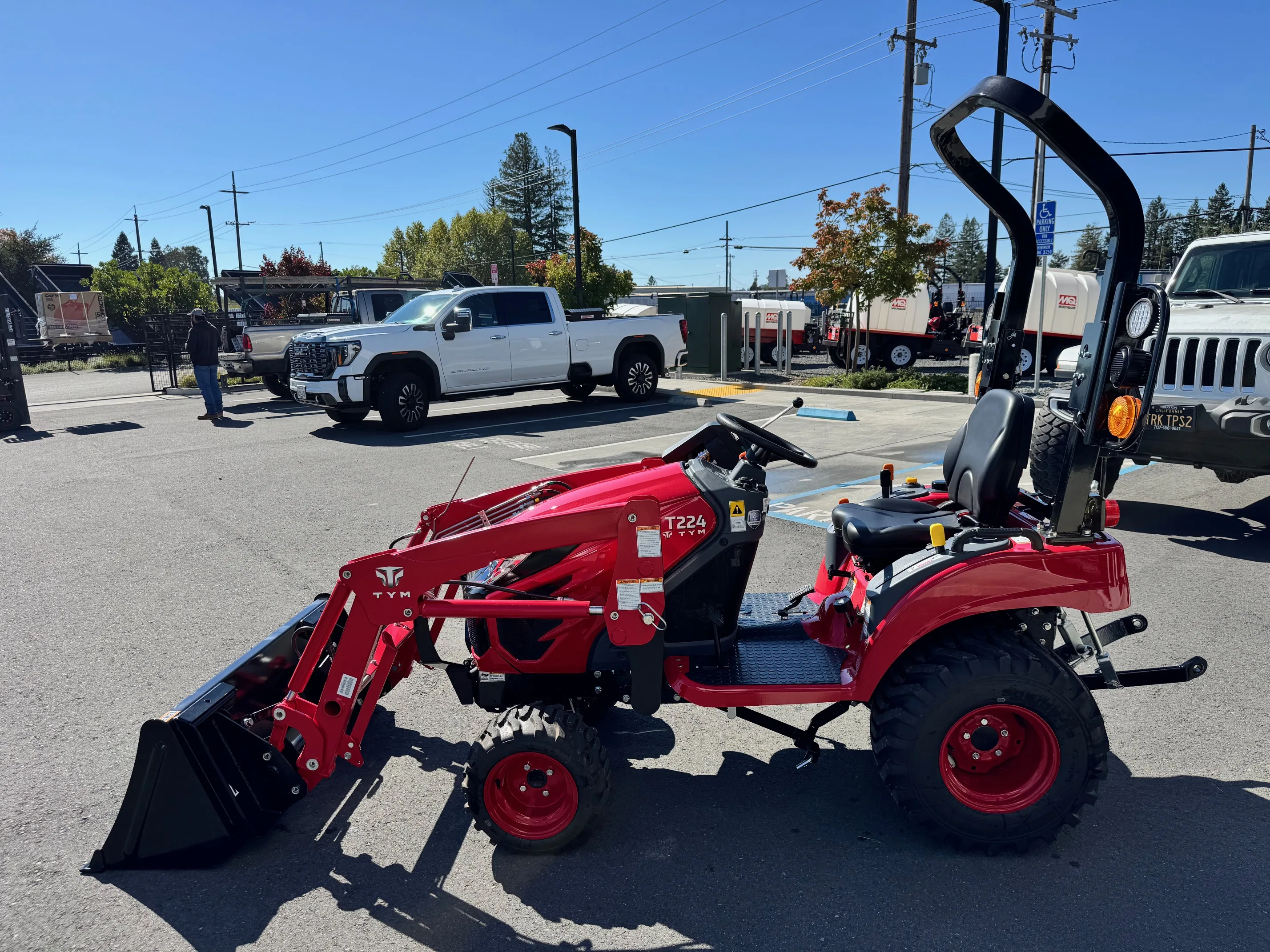

Includes Tractor & Quick Attach Loader

Perform the tasks of a full-size tractor, while enjoying the maneuverability of a riding mower. The T224 is the essential TYM Series 1 tractor, serving as an indispensable groundskeeper for every property owner.

Designed to be nimble and functional, this TYM Series 1 tractor allows greater maneuverability and promotes effortless operations for novice and experienced tractor riders alike. Hydrostatic steering controls and throttle levers help control tractor direction and engine speed, while a dedicated PTO lever can be used to control implement direction and speed. Affordably priced, the TYM T224 tractor offers owners the potential for great lifetime value, performing reliably for nearly any task in and around private property.

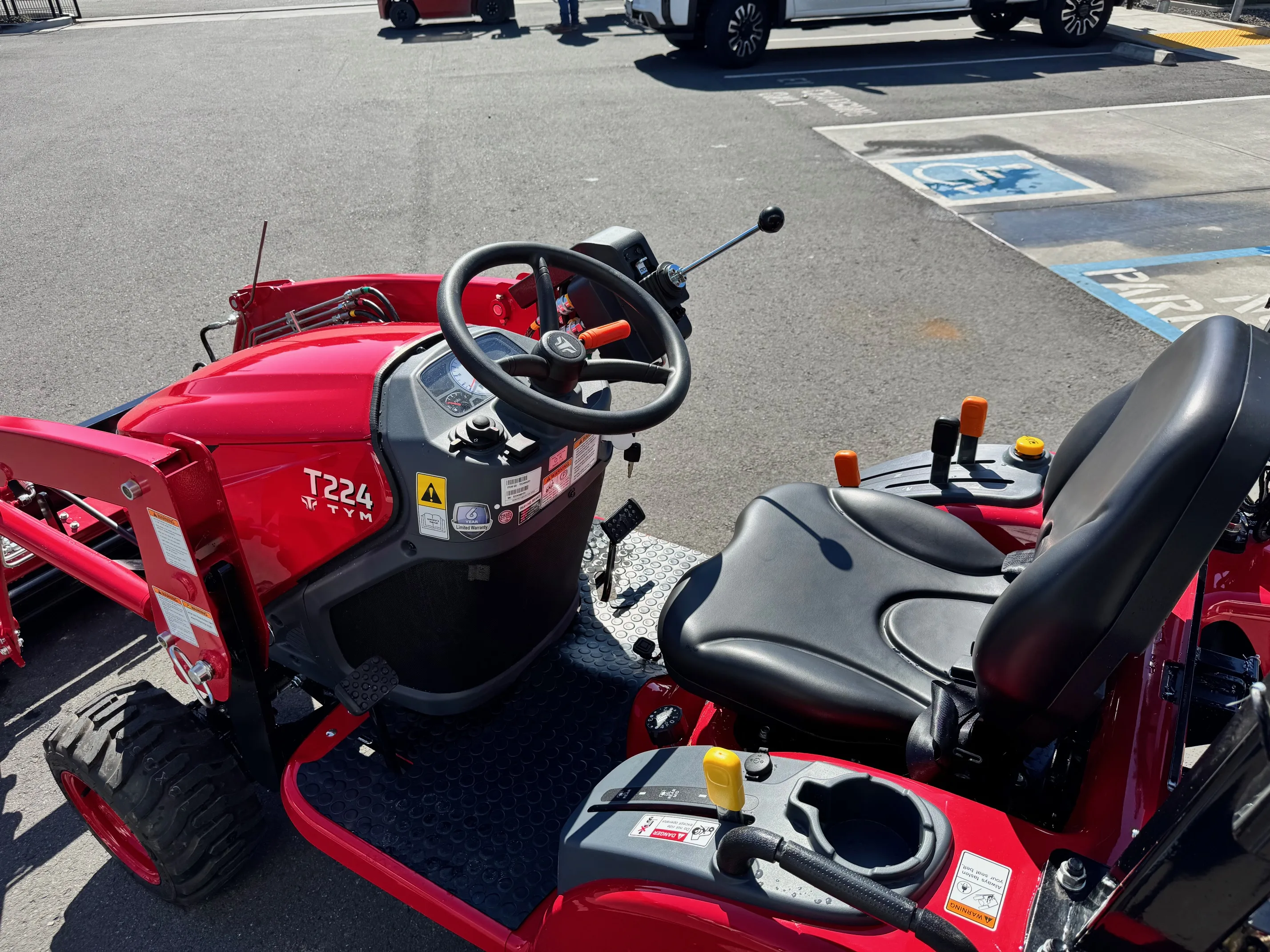

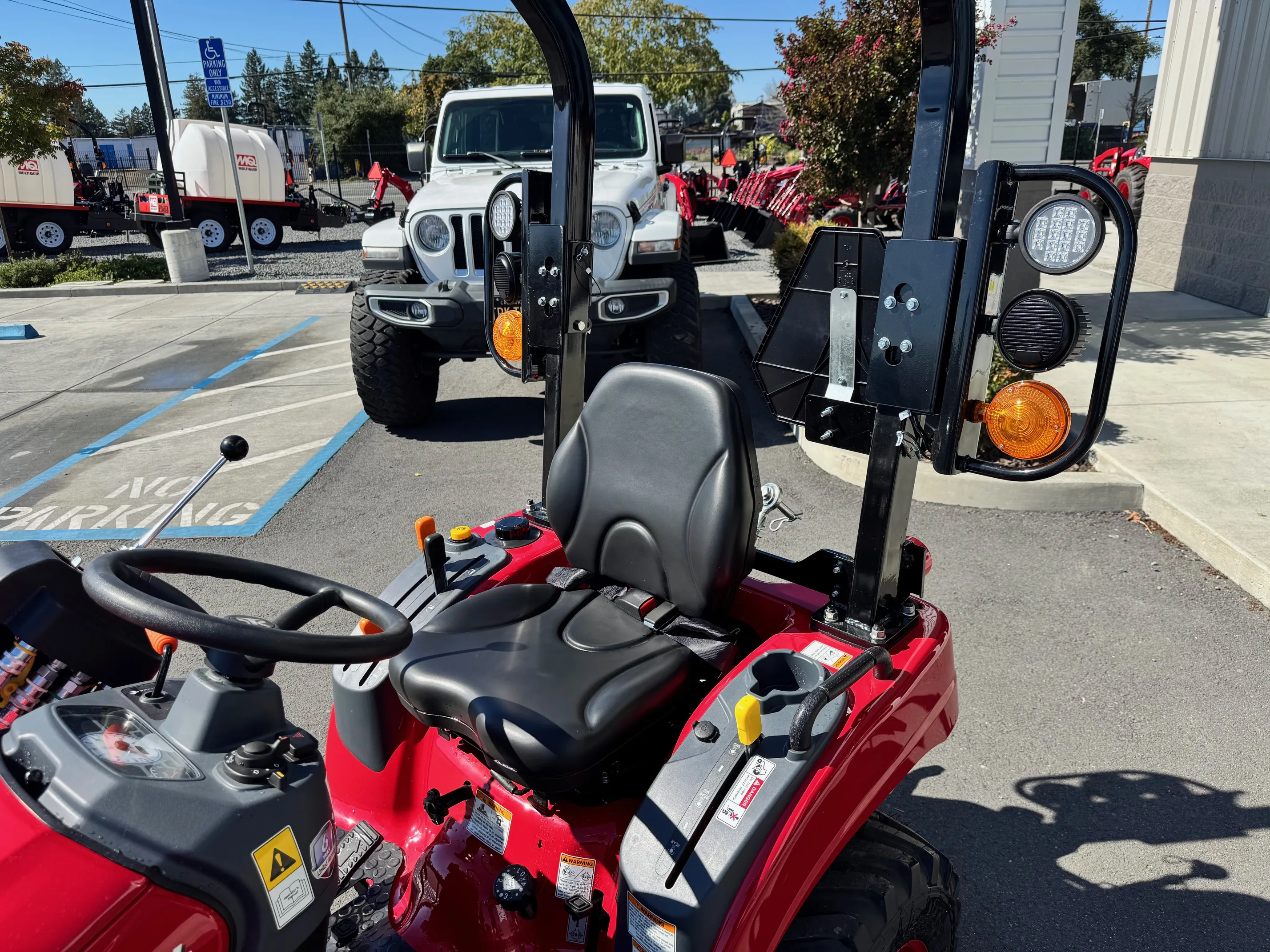

A wide operator cabin with a flat floor offers good visibility and ample leg room, promoting comfortable operation. Plus, all controls are within arm’s reach, including a dial to control the cutting height of the mid-mount implement. The accelerator, brake pedal, differential lock, and parking brake are easily accessible on the floor of the cabin, located precisely where you expect them to be. These features make the TYM T224 tractor easy to operate, even for novice drivers.

ergonomic seating inside the wide operator cabin with flat floor

The Japanese made Yanmar engine offers more torque with less revs compared to competitors in its class. Since it is water cooled, the engine warms up faster and stabilized temperature more effectively while the tractor is running. The engine is also Tier 4 certified, including for noise emission standards.

japanese made yanmar engine

The mid-mount linkage on the tractor allows easy installation for a mower up to 54 inches wide. Cutting height can be adjusted easily during operation using the dial on the operator console, so patches of overgrowth can be tackled more efficiently.

mid-mount linkage controls on the TYM T224 Tractor

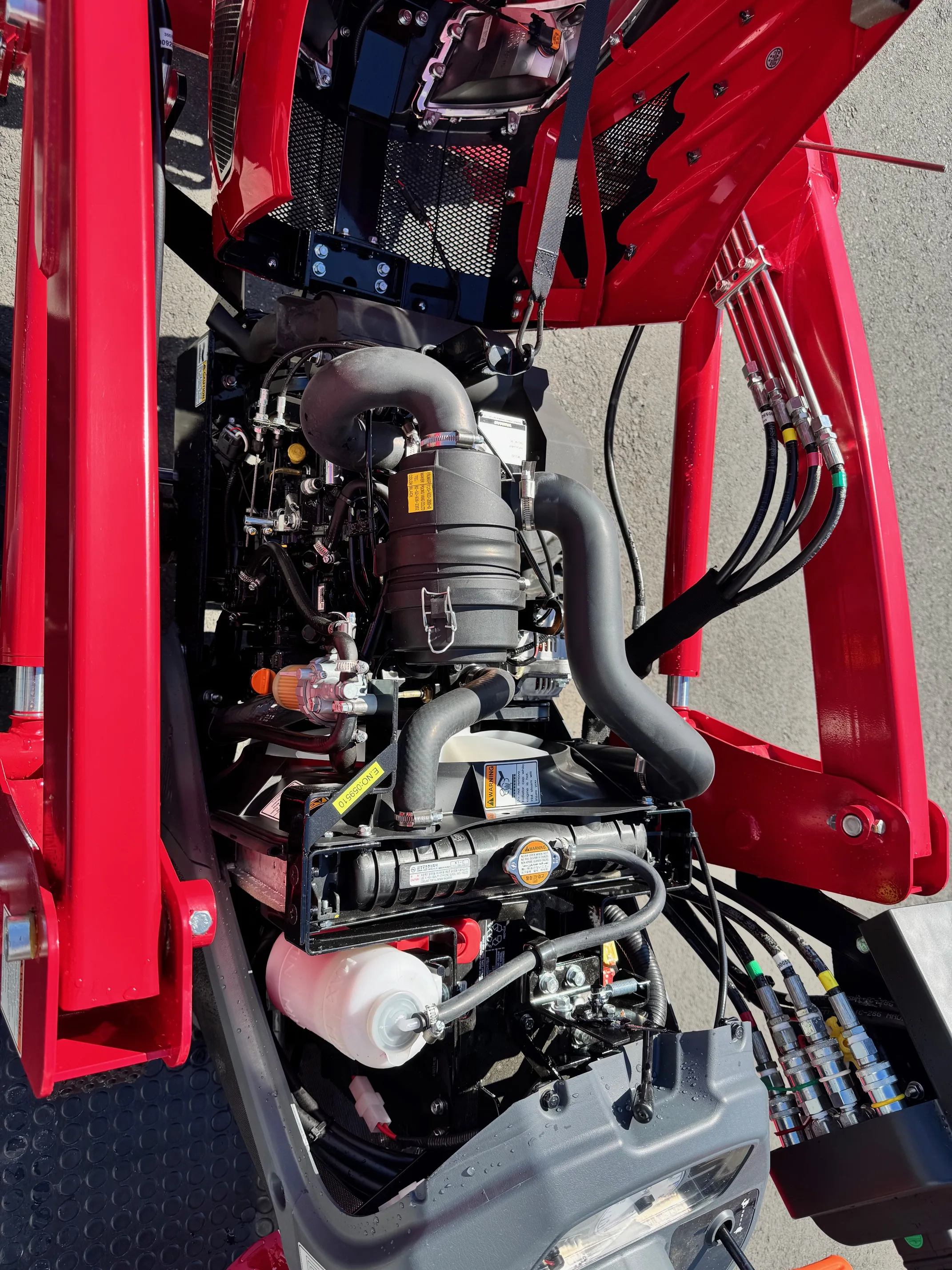

The tractor hood can be opened in one motion, providing easy access to the engine and other systems for daily checks, routine service and maintenance. The side panel can also be removed easily without the need for specialized tools.

hood open on the TYM T224 Tractor

Located on the right side of the driver’s seat, the fuel tank of this tractor is easy to open with an ergonomically designed twist-off cap. The tank can be topped up with fuel, even when implements are connected to the tractor.

man unscrewing the lid of the TYM T224 Tractor's gas tank

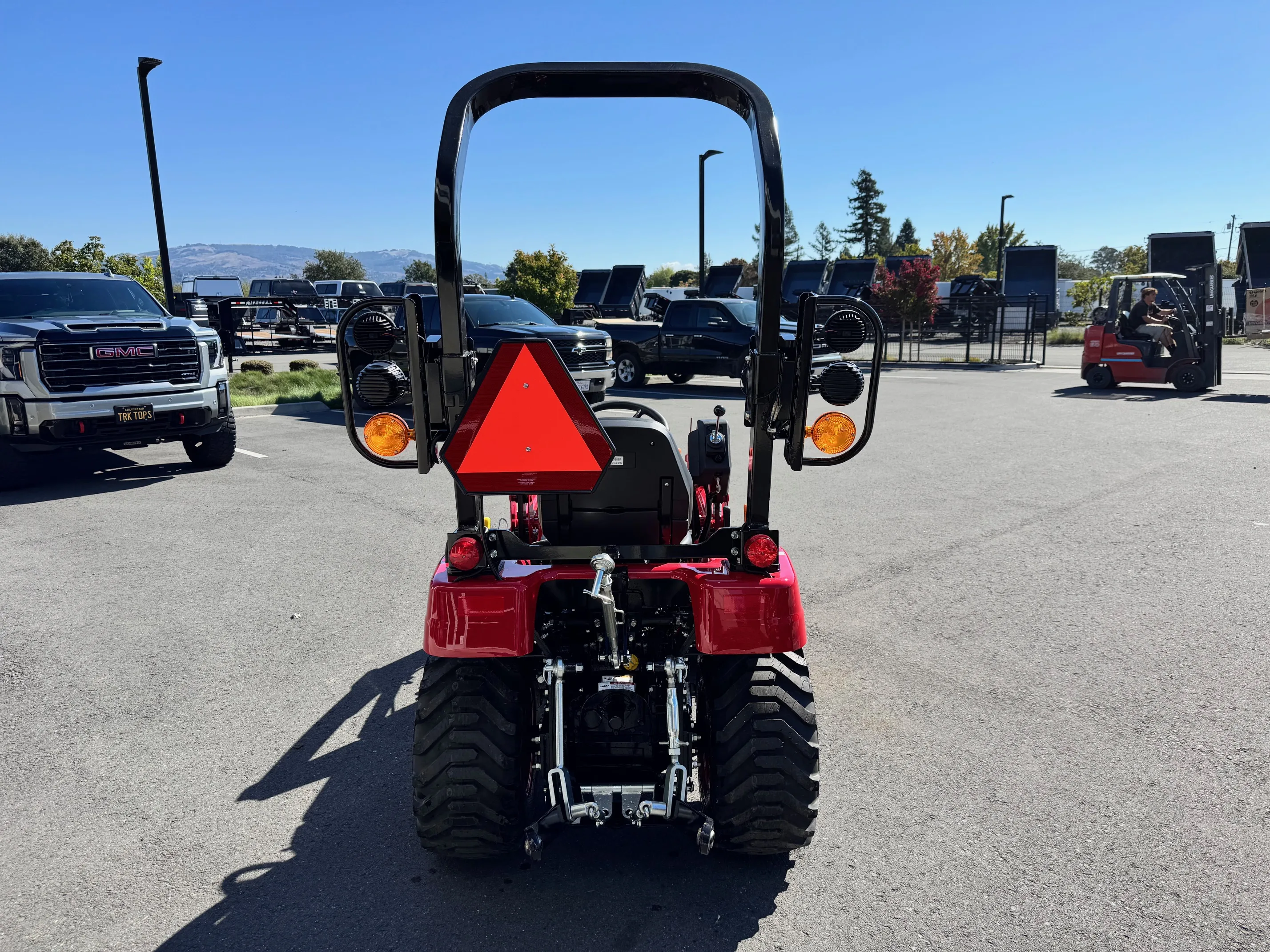

The Roll Over Protective Structure (ROPS) of the tractor is designed to be folded, allowing for easy storage in low-ceiling garages or sheds.

operator demonstrating the foldability of the TYM T224 Tractor's ROPS

Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed.

TYM T224 Tractor operator controls

TYM T224 Engine

Engine manufacturerYanmar 3TNV74F
TypeNatural Aspiration
Gross engine power21.5 hp | 16 kW
PTO power15.1 hp | 11.3 kW
Rated engine speed3200 rpm
No. of cylinders3
Displacement60.6 cu. in.
Air cleanerSingle Dry
Alternator12V, 40A
Fuel systemIDI

Powertrain

Transmission typeHST
No. of speeds2-Range
Max. traveling speed8.4 mph
BrakesWet Disc
SteeringHydrostatic
ClutchN/A

Hydraulic System

Pump typeSingle Gear Pump
Implement flow4.17 gpm
Steering flow2.11 gpm
Total flow6.28 gpm
Category, 3-point hitchI (N)
Hitch lift capacity1100 lb
Loader Lift Capacity617 LBS
Hitch lift capacity at 24 inches behind link ends679 lb
Lift control typePosition
No. of standard remote valvesOptional (1)

PTO

PTO typeIndependent
PTO controlElectric/Hydro
PTO rear540 rpm

Capacities

Fuel tank6.6 gal
Coolant3.7 qt
Crankcase1.9 qt
Transmission/Hydraulics system3.6 gal
Front axle2.6 qt

TYM T224 Tractor Dimensions and Weights

Overall length with 3-point hitch94.2 in.
Overall width44.5 in.
Wheelbase53.1 in.
Height to top of ROPS86.6 in.
Min. ground clearance8.3 in.
Min. turn radius without brakes86.6 in.
Weight with ROPS1472 lb

Tires

R3 Turf – FrontTurf Master 16×7.50-8 NHS TL 4PR
R3 Turf – RearTurf Master 24×12.00-12 NHS TL 4PR
R4 Industrial – FrontWT300 18×8.5-10 NHS TL 4PR
R4 Industrial – RearWT300 26×12.00-12 NHS TL 4PR
