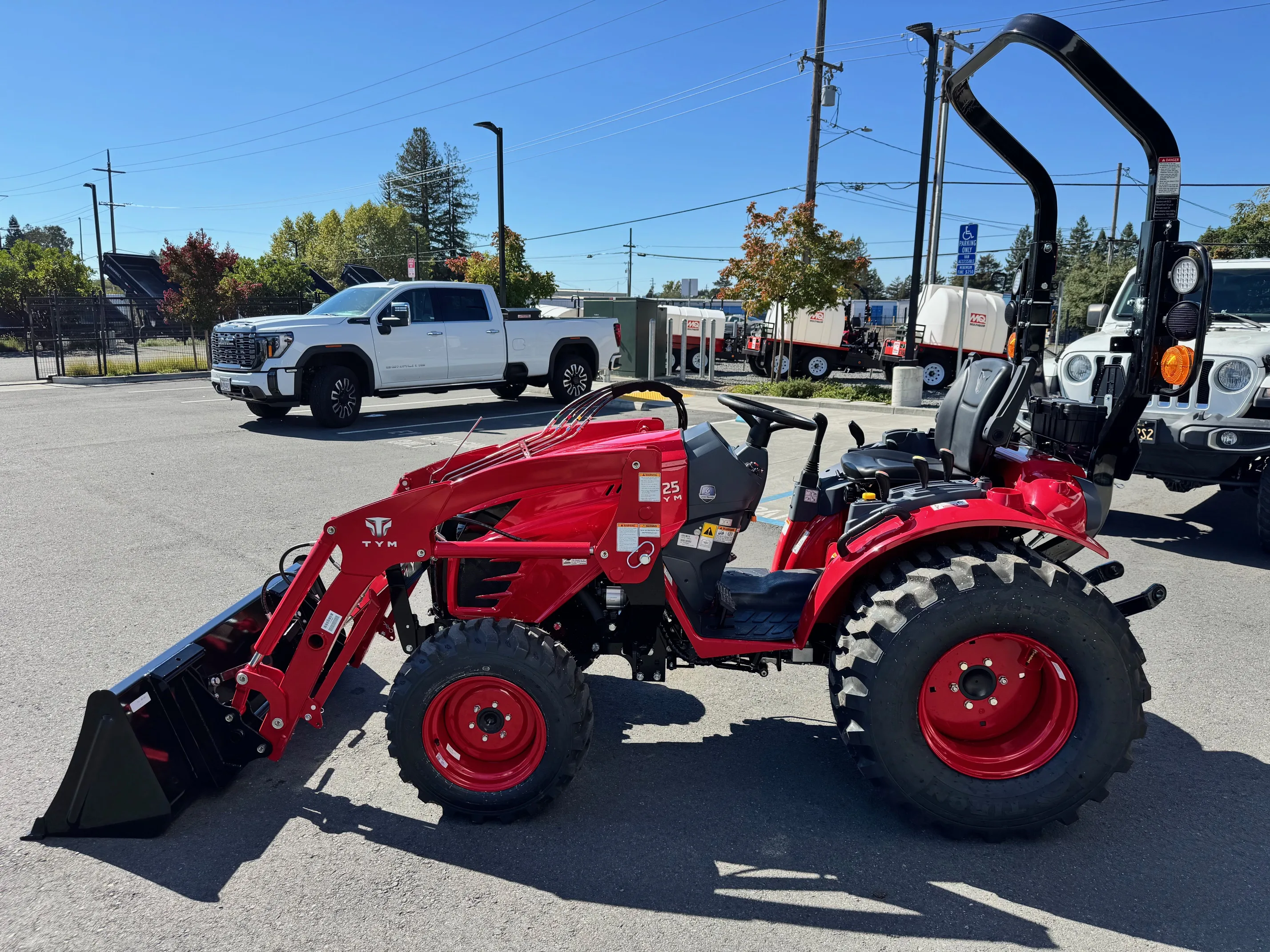

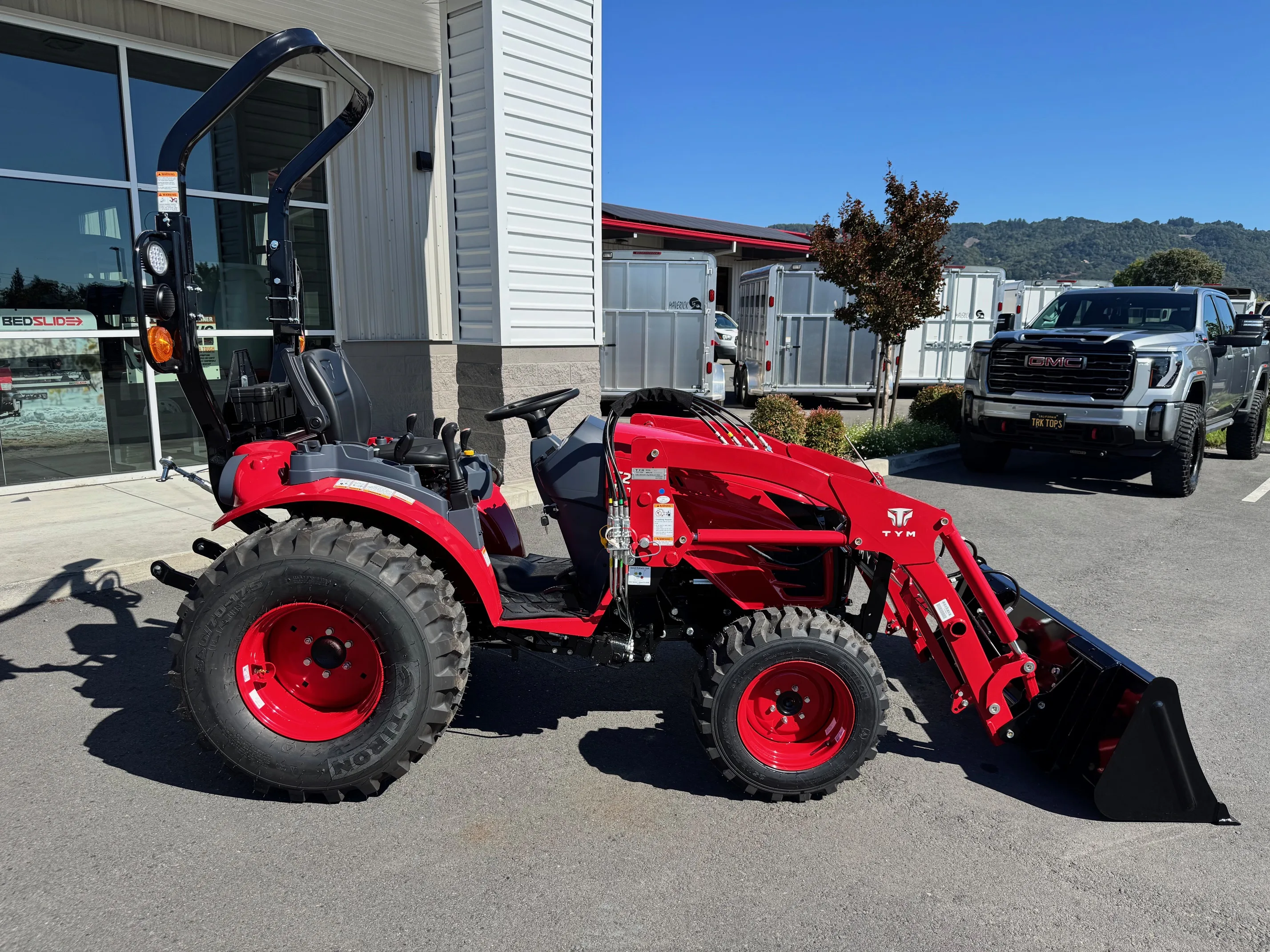

TYM T25H Tractor

Product Help Tractor Credit Application

Overview

Cash/Check Price – $19,210 – Financing Available

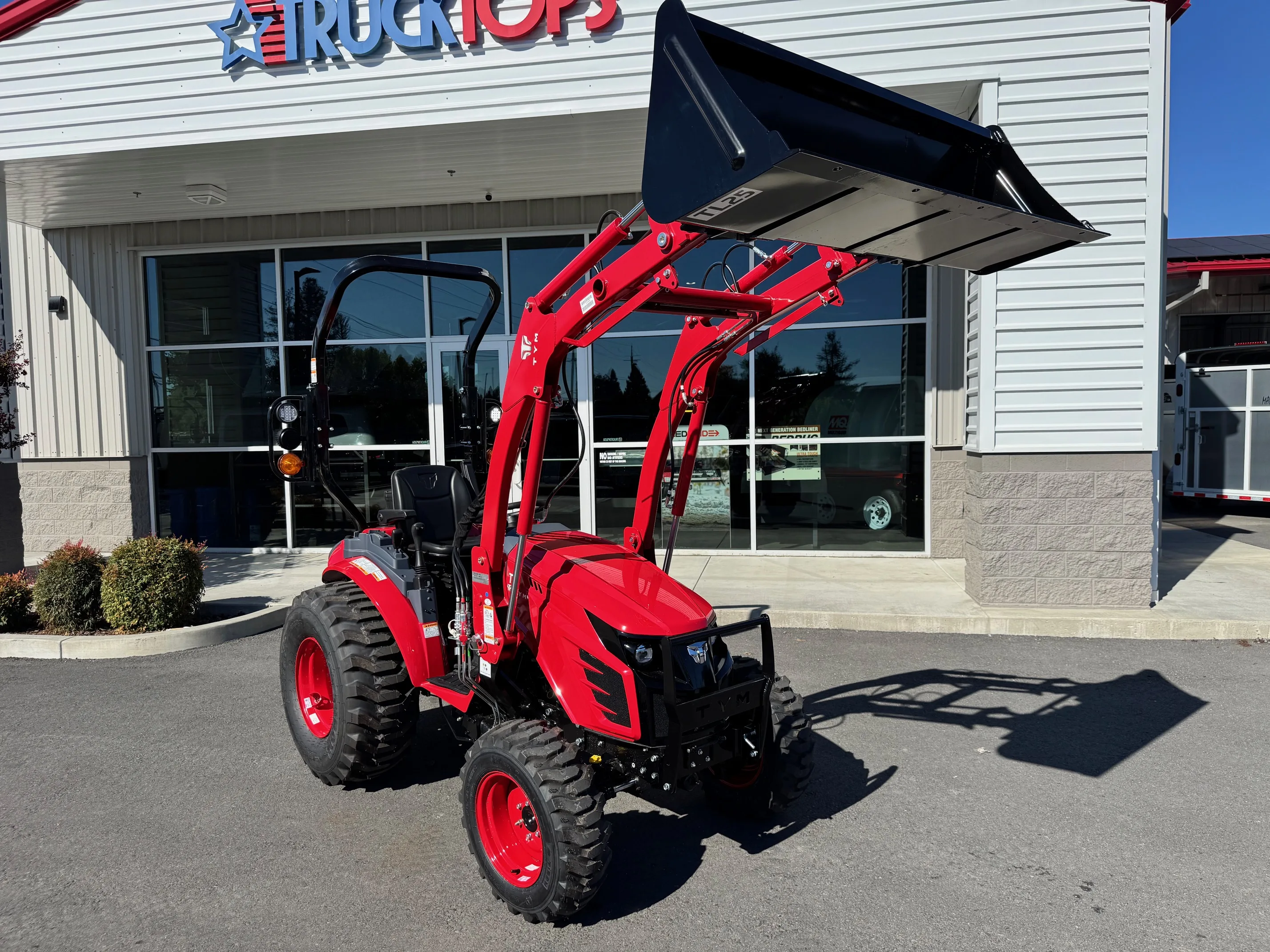

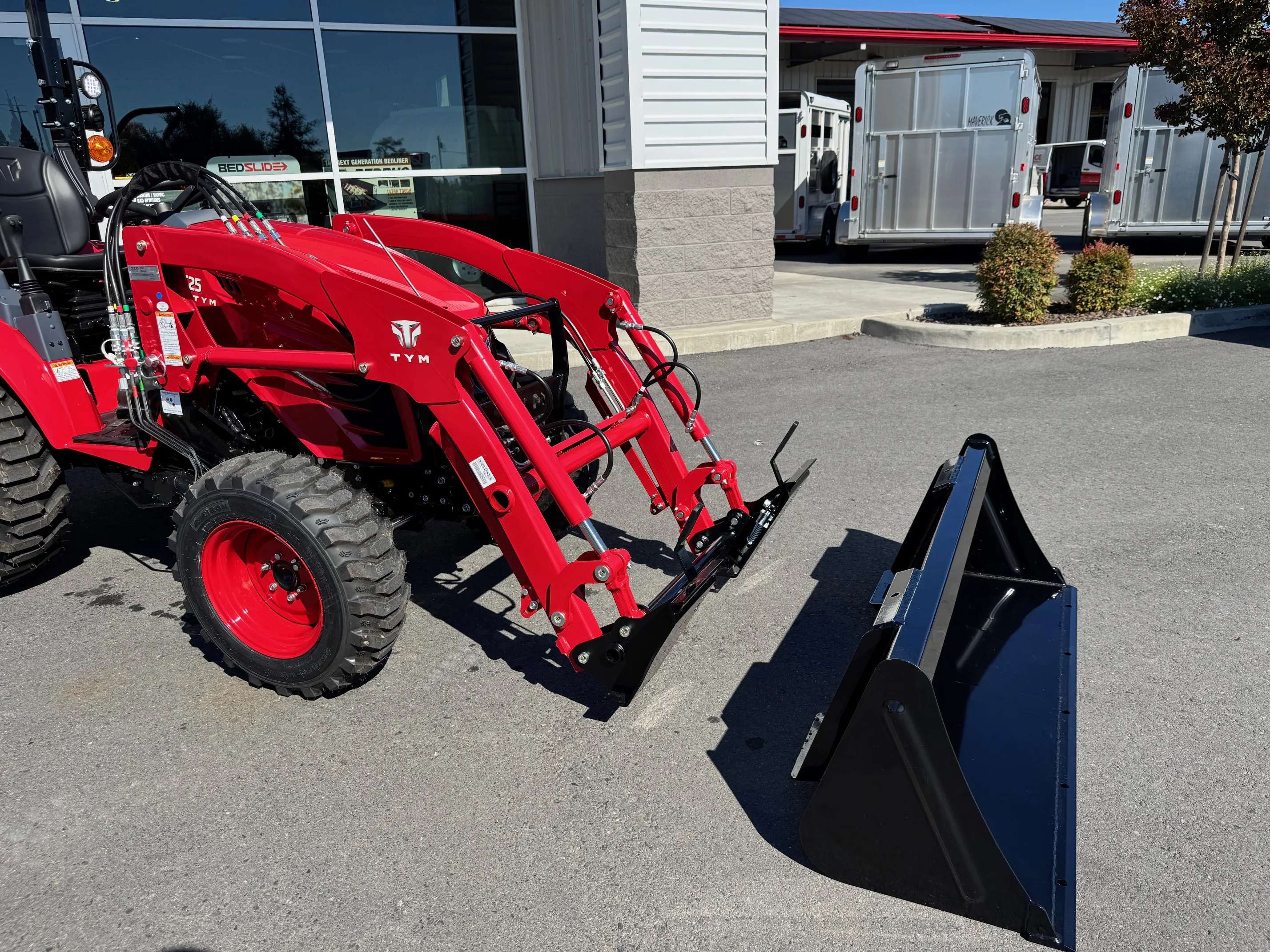

Includes Tractor & Quick Attach Loader

Get work done quicker with this small-frame tractor. Highly maneuverable and with maximized lift capabilities, the T25 tractor from TYM is designed to be an all-round multi-tasking machine.

Optimized height and heavier structure come together in the highly durable T25, equipped one of the biggest lift capabilities among sub-compacts. Higher traveling speeds enable greater ground coverage, powered by an efficient engine that generates more output at lower rpms. The engine is also Tier 4 certified, producing minimized emissions and promoting more efficient fuel burn.

With features to promote operator productivity like the brighter LED console and additional implement functionality with a third function valve, the TYM T25 Tractor enables productivity and versatility to every job. Expect to tackle any outdoor challenge and gain a lifetime of benefits with this top-of-the-line TYM sub-compact.

Fully equipped with modern amenities to maximize operator comfort, this tractor is complete with a large cup holder, wireless smartphone charging dock, multiple USB ports to charge personal devices and a Bluetooth speaker. These features are designed to promote productivity, keeping drivers hydrated, connected, and alert during every job.

the TYM T25 Tractor features a comfortable operator cabin

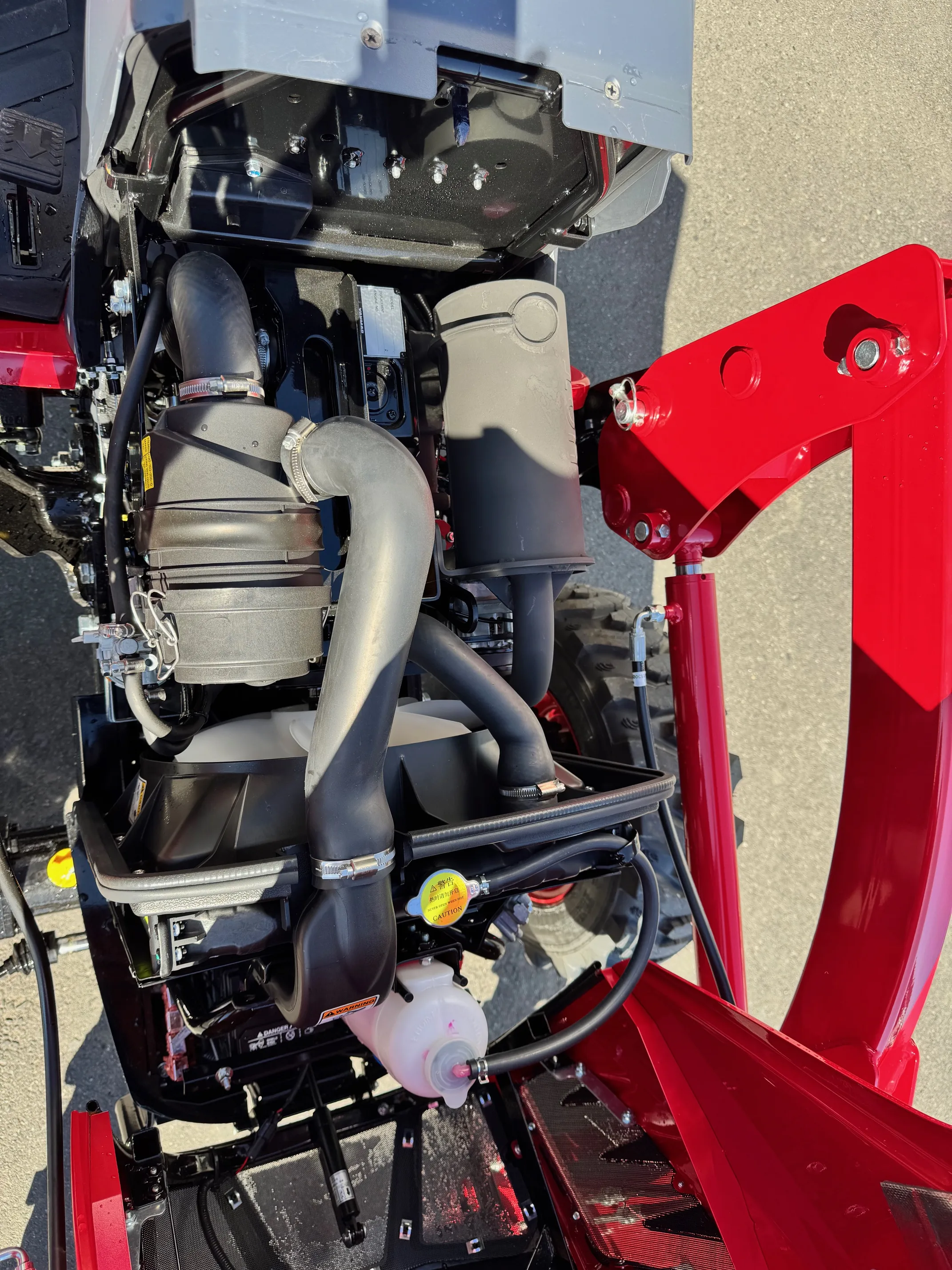

The Yanmar engine offers more torque with fewer revs compared to competitors in its class. Since it is water-cooled, the engine warms up faster and stabilizes temperature more effectively while the tractor is running. The engine is Tier 4 certified as it matches environmental and noise emission standards.

high torque, water cooled japanese made yanmar diesel engine in the TYM T25 Tractor

The high capacity fuel tank allows drivers to take on jobs for longer periods without stopping for fuel. This is in addition to the engine, which promotes fuel-efficient operation and increases the time before a refuel.

closeup of the opening the TYM T25 Tractor's high capacity fuel tank

Attached to the right and left verticals on the foldable ROPS structure, this tractor features a modular system with three slots for lights, work lamps, and speakers. Based on operator preference and working conditions, more speakers and lamps can be attached. This brings operators comfort and security in daylight or at night.

closeup of optional work light accessories attached to the tractor's frame

Packed with value-added features to enhance ease of operation, including a new fuel cap design to enhance grip and reduce manual effort and a brighter meta panel engineered to enhance operator awareness.

high visibility instrument panel for operator ease of use

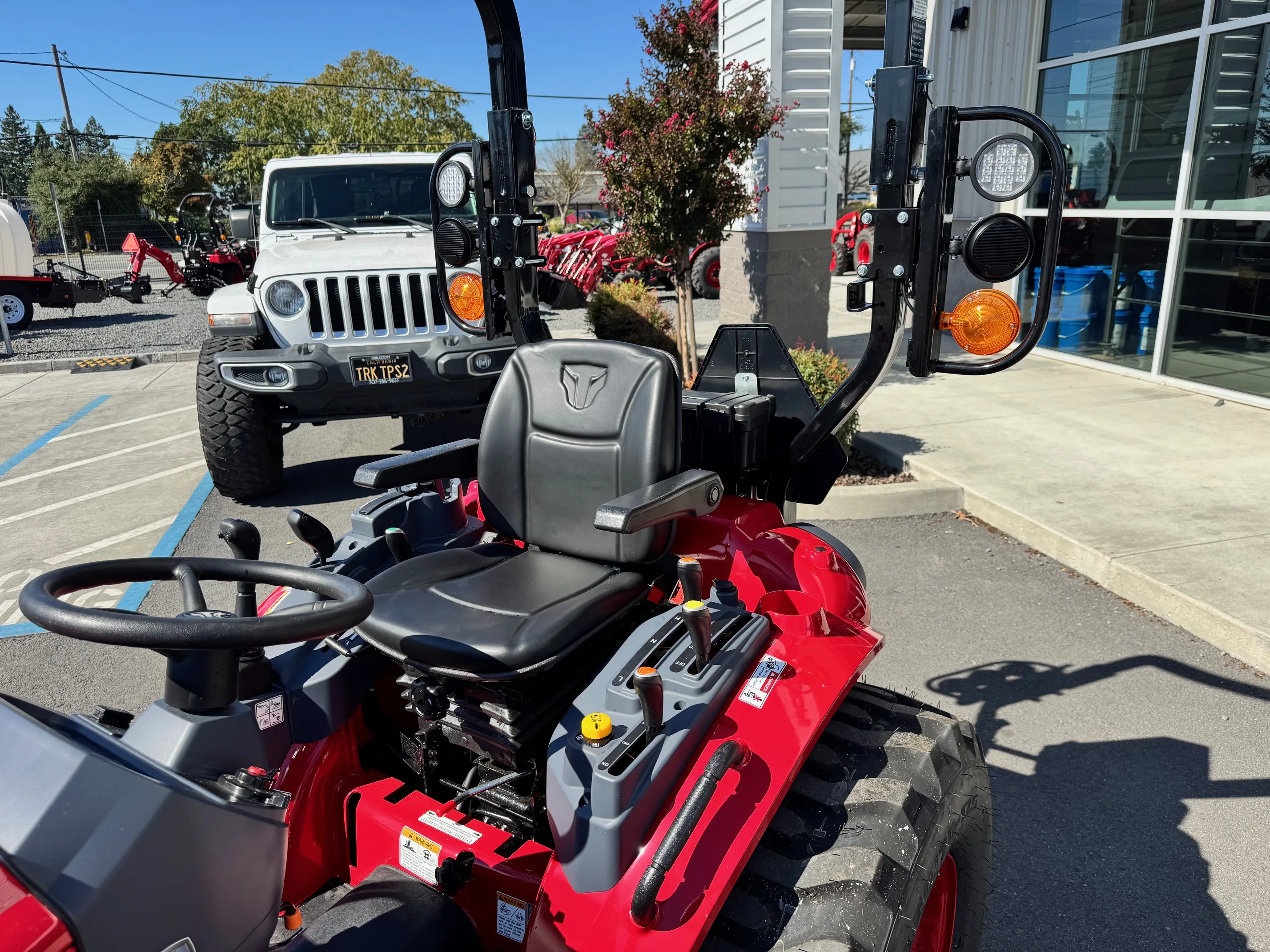

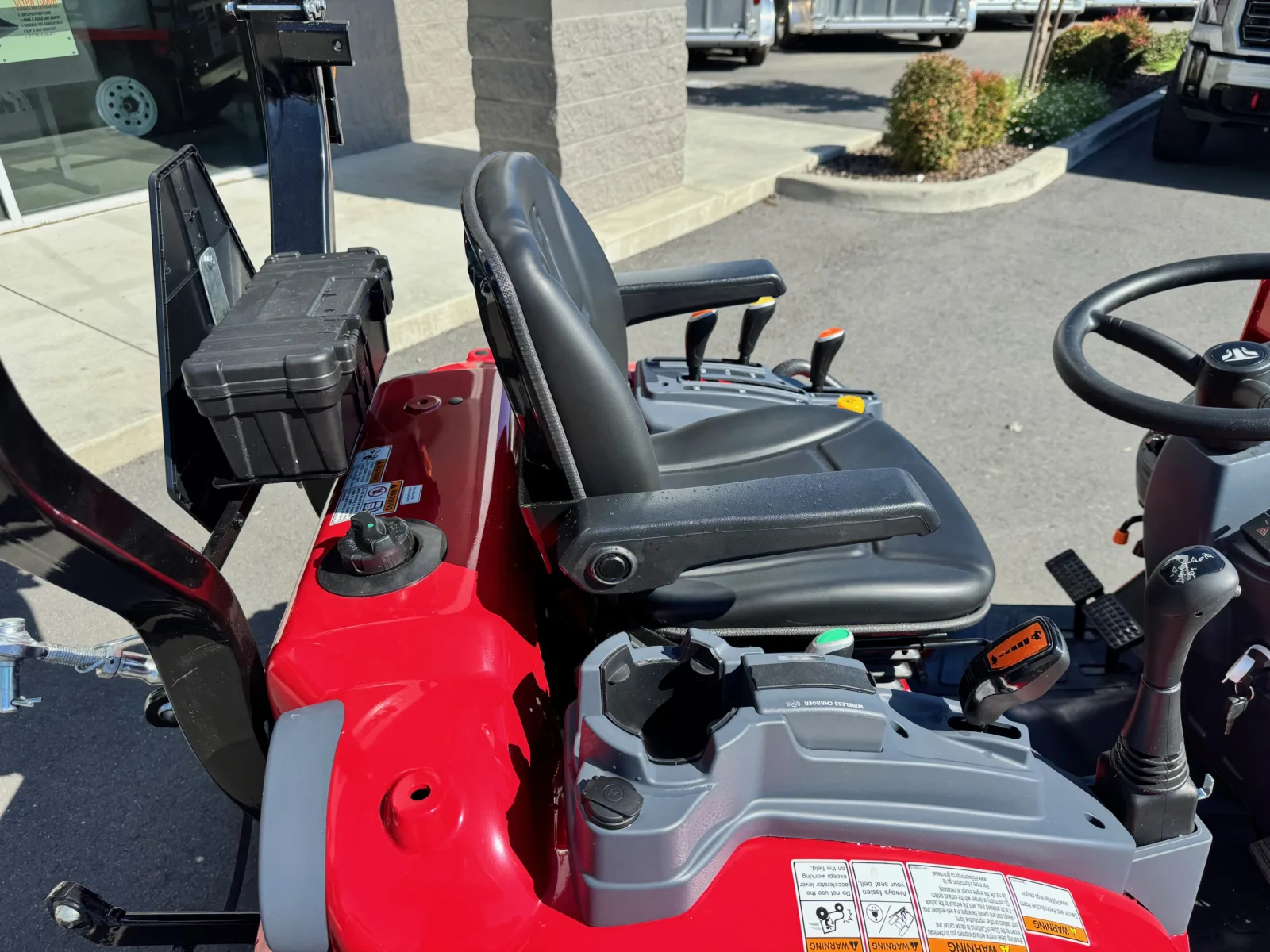

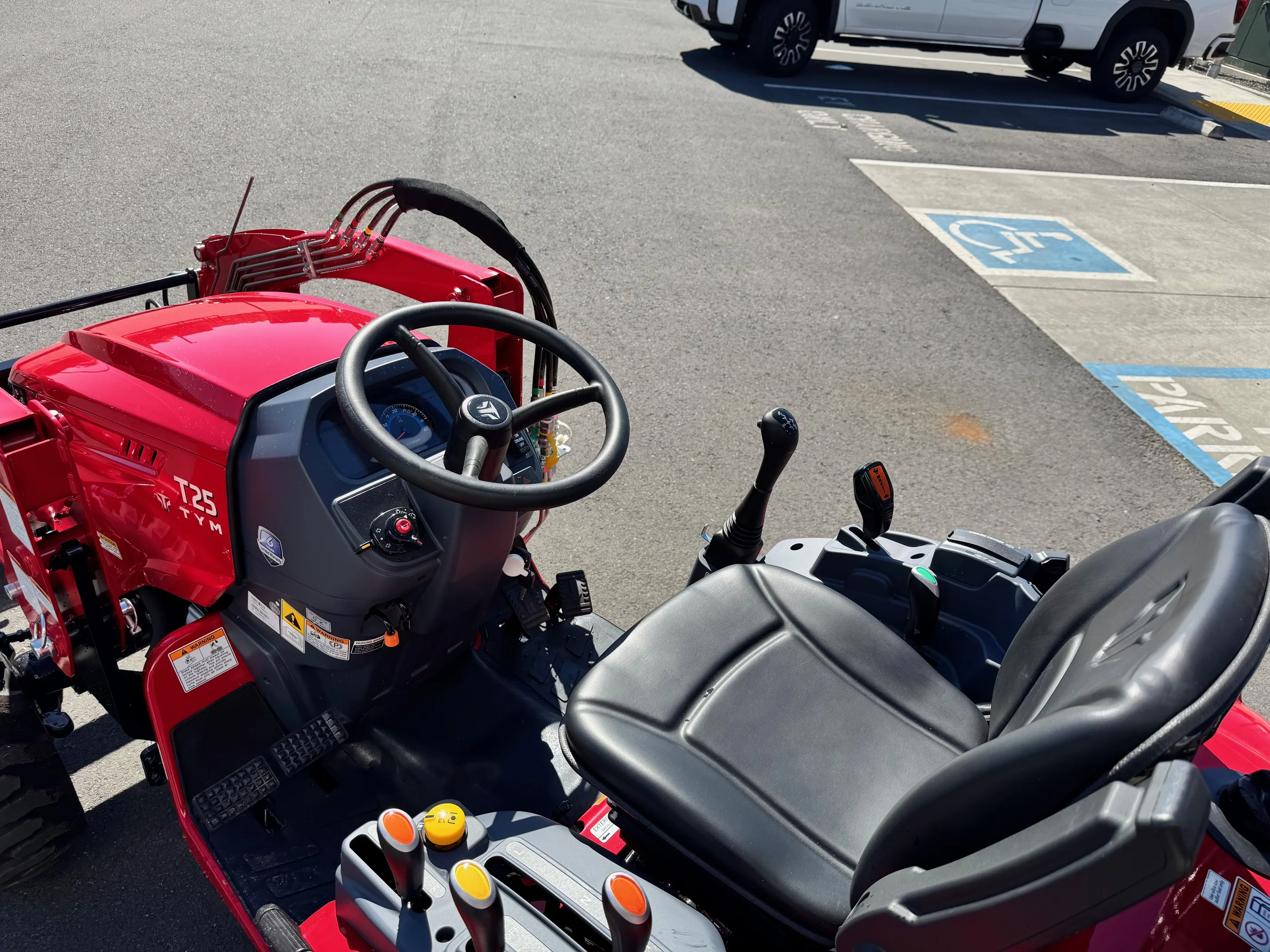

In addition to a standard retractable seatbelt and cushioning, the seat of this tractor can hold over 400 lb (190 kg) and is equipped with a heavy duty mechanical suspension. While the seat provides comfort, the suspension acts as a buffer on uneven ground, keeping the operator secure in situations where there is a risk of impact on the lower back. The seat can also be manually adjusted for weight, enabling operators to have the most optimal seating position.

closeup of the manually adjustable operator seat designed with ergonomics in mind

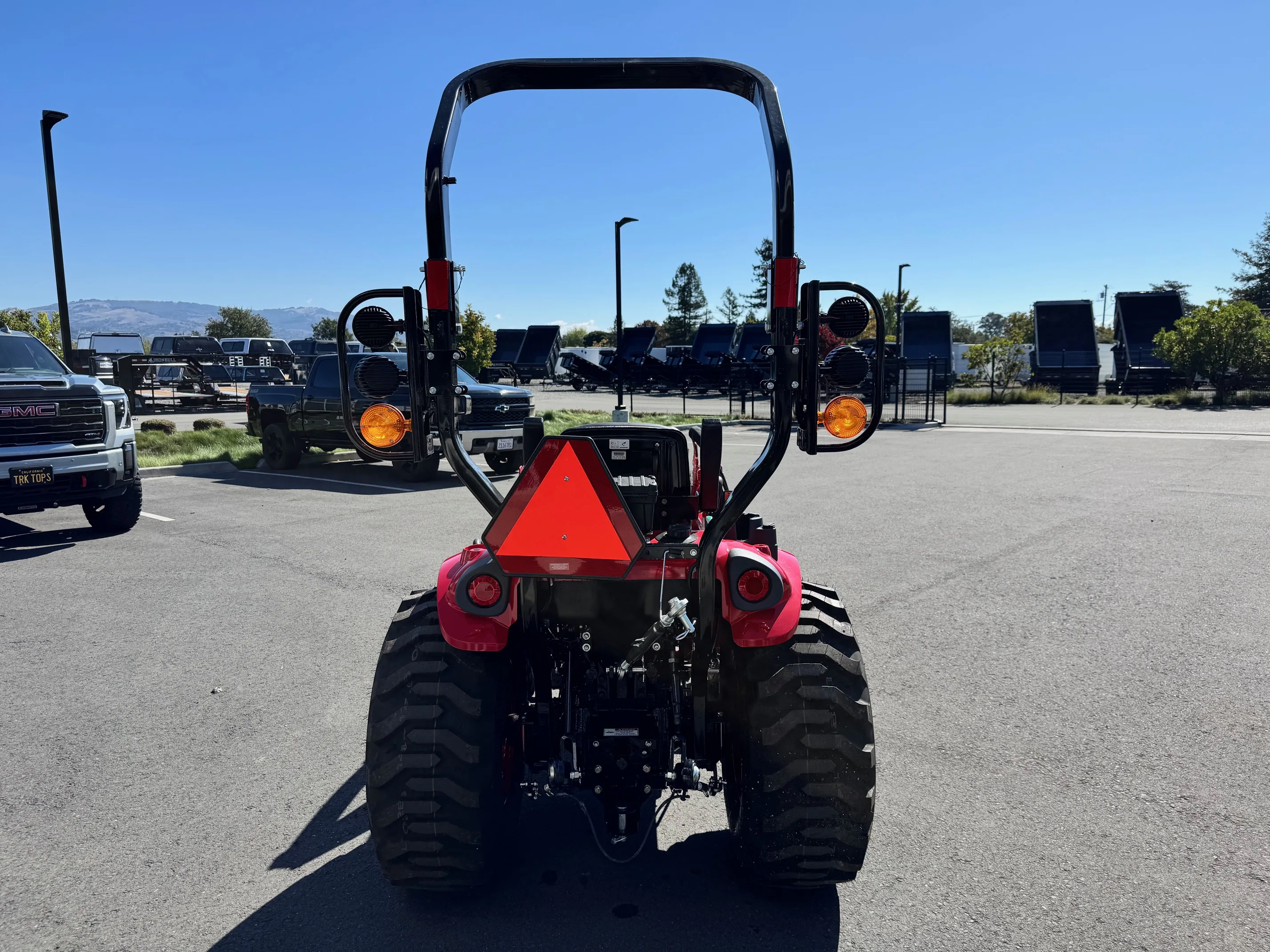

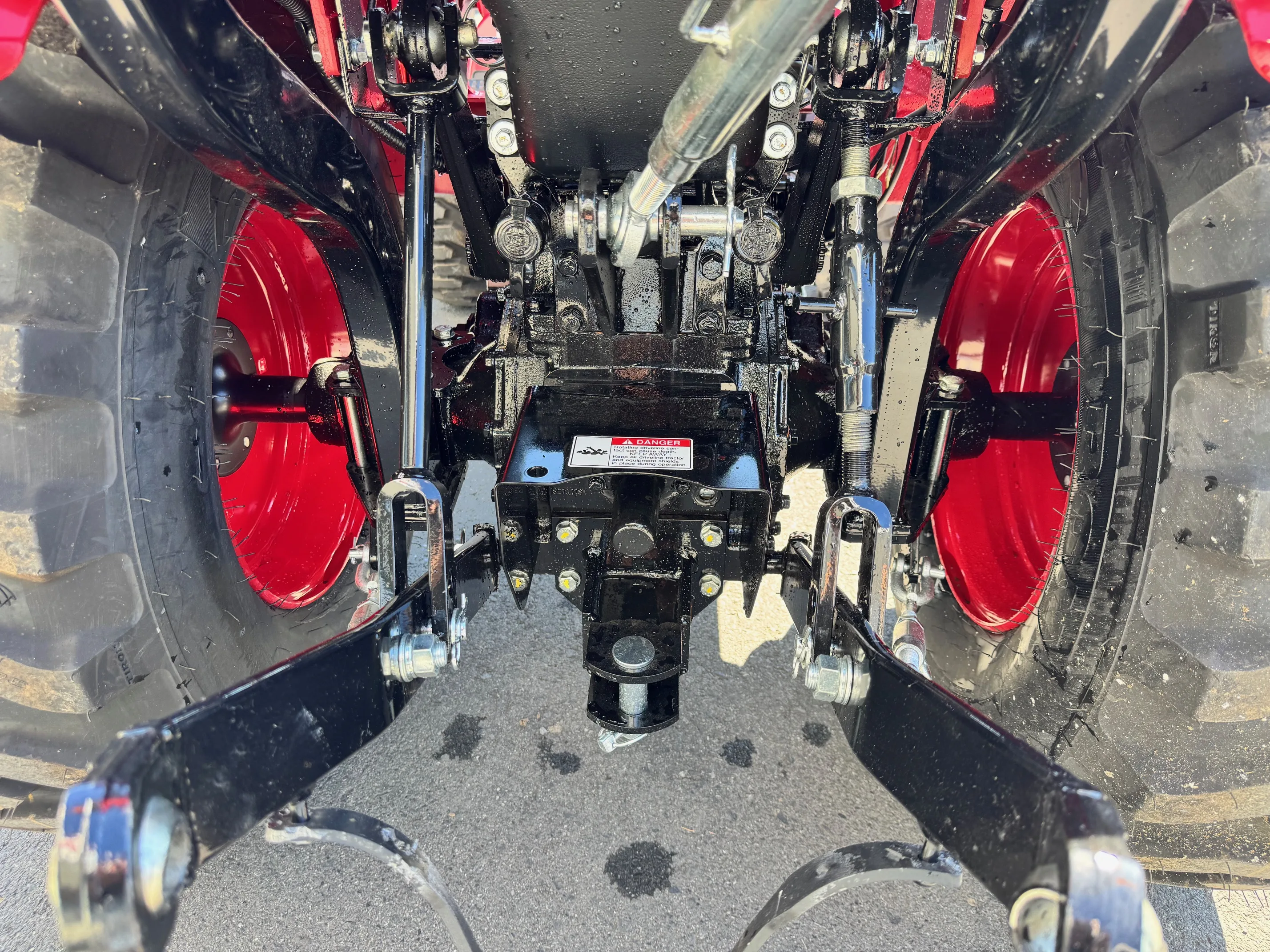

The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joint. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging.

closeup of the 3-point read linkage

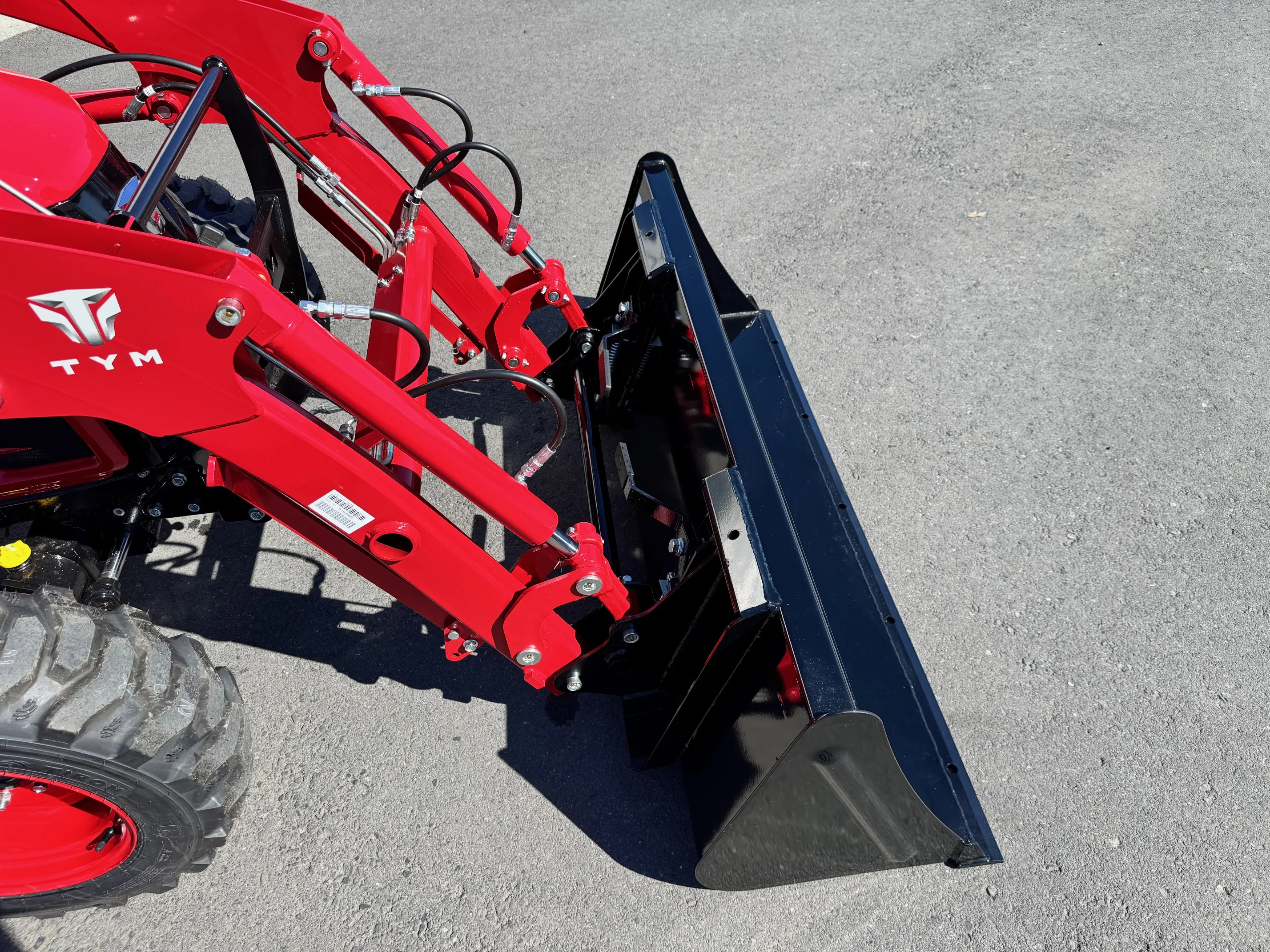

Allowing for versatile implement handling, this tractor comes ready with a 3rd function installation kit. It can maximize the use of a bucket implement with 4-in-1 functionality, including lifting, tilting, dumping and grappling.

closeup of the 3rd function installation kit

TYM T25 Engine

Engine manufacturerYanmar 3TNV80F
TypeNatural Aspiration
Gross engine power24.7 hp | 18.4 kW
PTO power18.3 hp | 13.6 kW
Rated engine speed3000 rpm
No. of cylinders3
Displacement77.3 cu. in.
Air cleanerSingle Dry
Alternator12V, 40A
Fuel systemIDI

Powertrain

Transmission typeSynchro-Shuttle/HST
No. of speedsInfinite 2-Range
Max. traveling speed13.7 mph
BrakesWet Disc
SteeringHydrostatic
ClutchN/A

Hydraulic System

Pump typeSingle Gear Pump
Implement flow4.18 gpm
Steering flow2.77 gpm
Total flow6.95 gpm
Loader Lift Capacity1380 lbs
Category, 3-point hitchI
Hitch lift capacity1534 lb
Hitch lift capacity at 24 inches behind link ends1102 lb
Lift control typePosition
No. of standard remote valvesOptional (1)

PTO

PTO typeIndependent
PTO controlElectric/Hydro
PTO rear540 rpm

Capacities

Fuel tank6.6 gal
Coolant3.8 qt
Crankcase2.9 qt
Transmission/Hydraulics system5.8 gal
Front axle4.7 qt

TYM T25 Tractor Dimensions & Weights

Overall length with 3-point hitch107.8 in.
Overall width52.8 in.
Wheelbase61 in.
Height to top of ROPS89.8 in.
Min. ground clearance7.71 in.
Min. turn radius with brakes102.4 in.
Min. turn radius without brakes109.5 in.
Weight with ROPS1881 lb
Weight with cab2399 lb

Tires

R3 Turf – FrontTurf Master 23×8.50-12 NHS TL 4PR
R3 Turf – RearMulti-Trac CS 33×12.50-16.5 NHS TL 4PR
R4 Industrial – FrontTrac Chief 23×8.50-14 NHS TL 4PR
R4 Industrial – RearTrac Chief 14-17.5 NHS TL 6PR
