TYM T254H Tractor

Product Help Tractor Credit Application

Overview

Cash/Check Price $17,515 – Financing Available

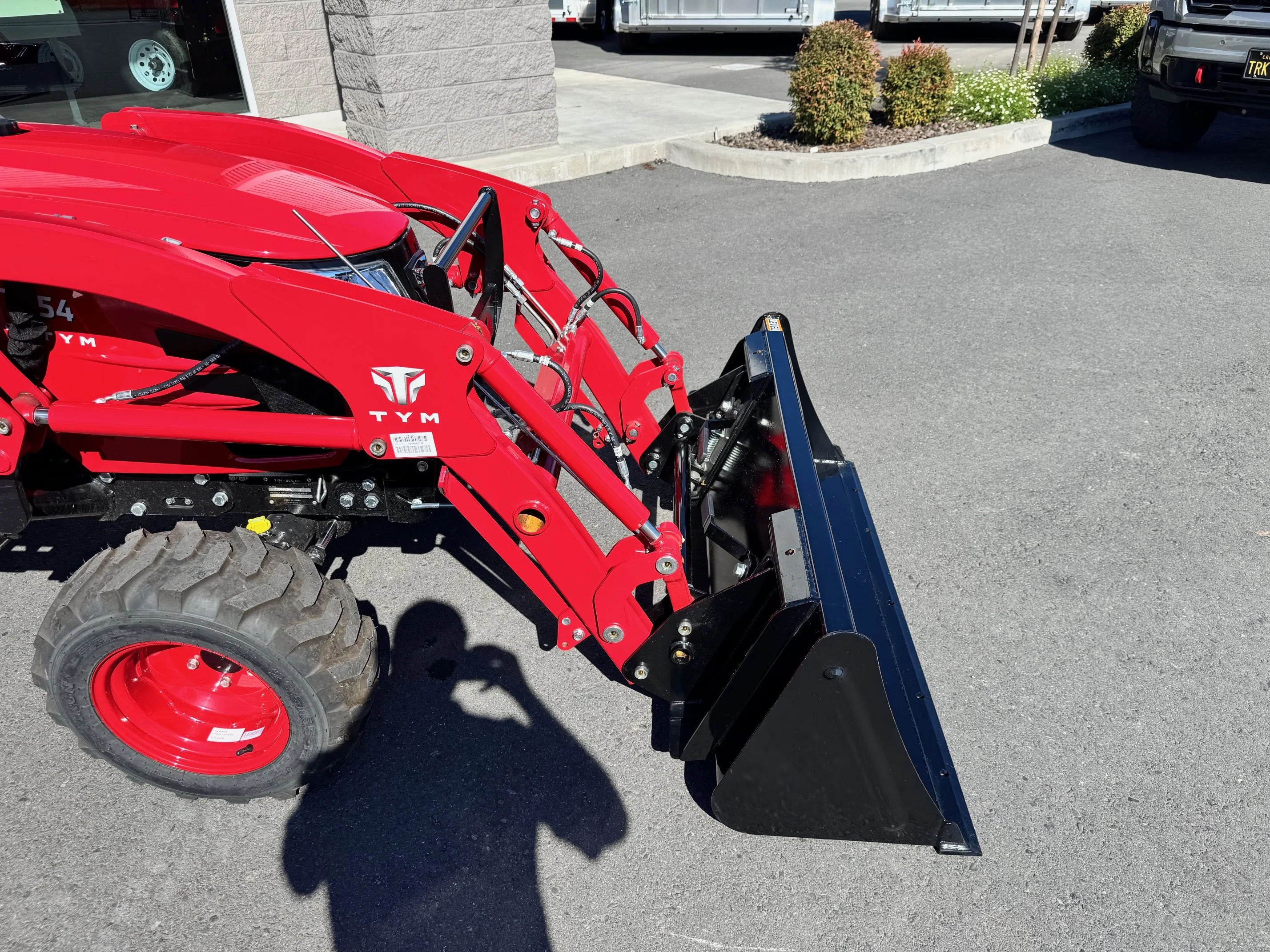

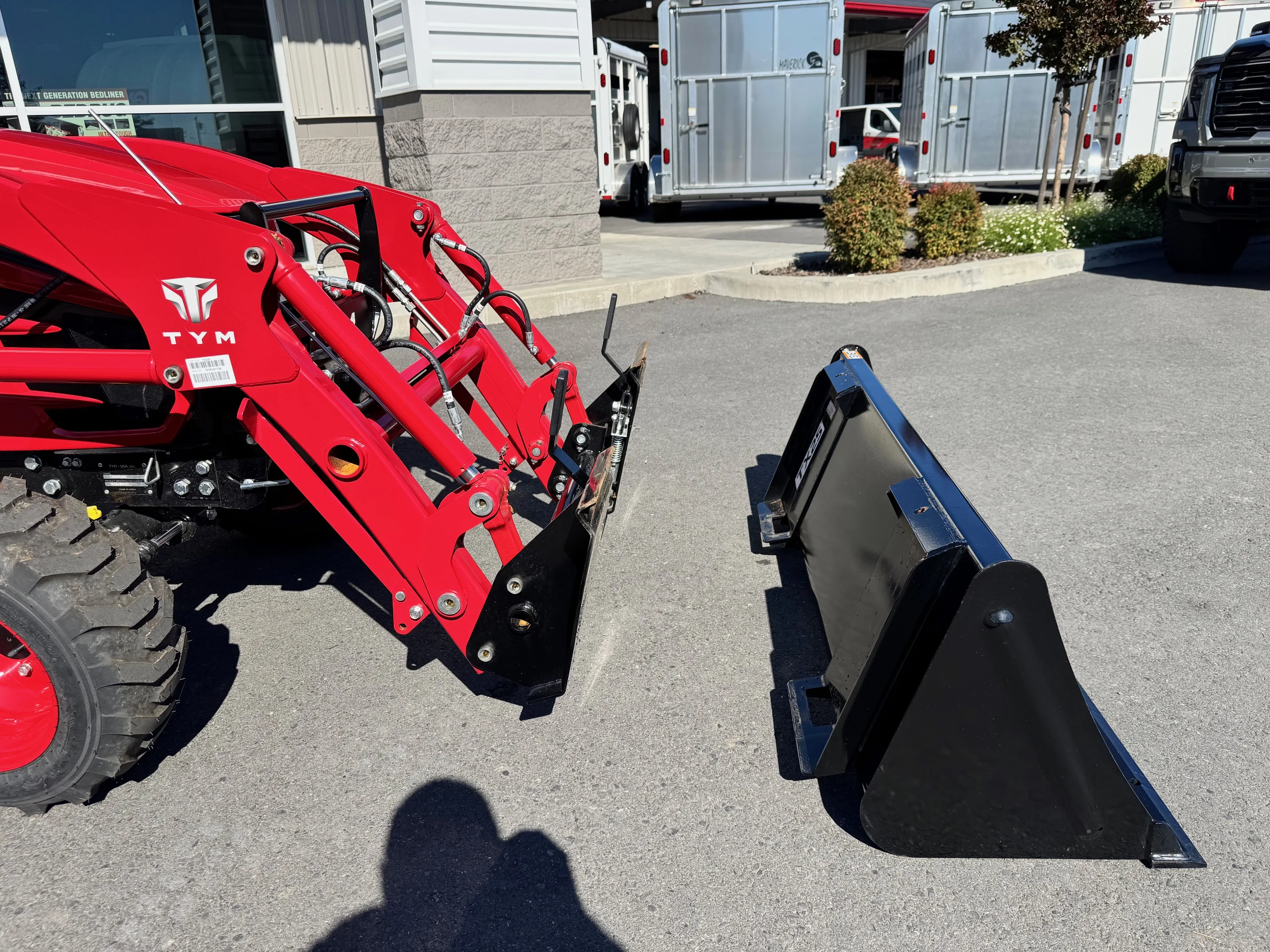

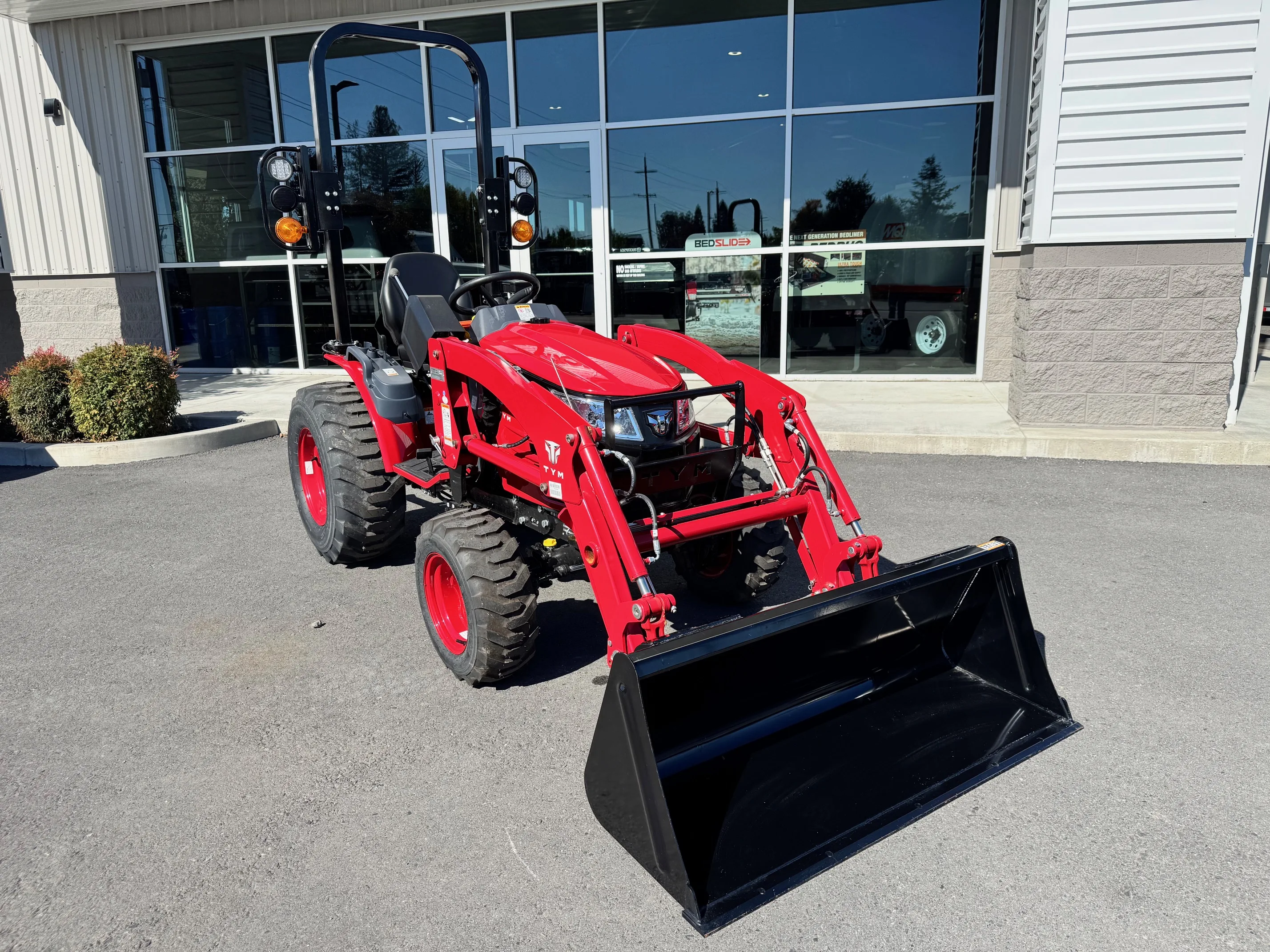

Includes Tractor & Quick Attach Loader

This tractor is proof that good things can come in small packages. The T254H tractor from TYM brings you greater power without compromising on maneuverability, backed by a powerful engine and ergonomic operator controls.

With narrow dimensions, a small turning radius, intuitive controls and a lightweight design, the TYM T254 sub-compact tractor is the ideal machine for any home with a yard. A dedicated mid-mount linkage allows easy attachment to a range of mowers in different sizes, while front-end and rear linkages allow for additional functionality compared to riding mowers.

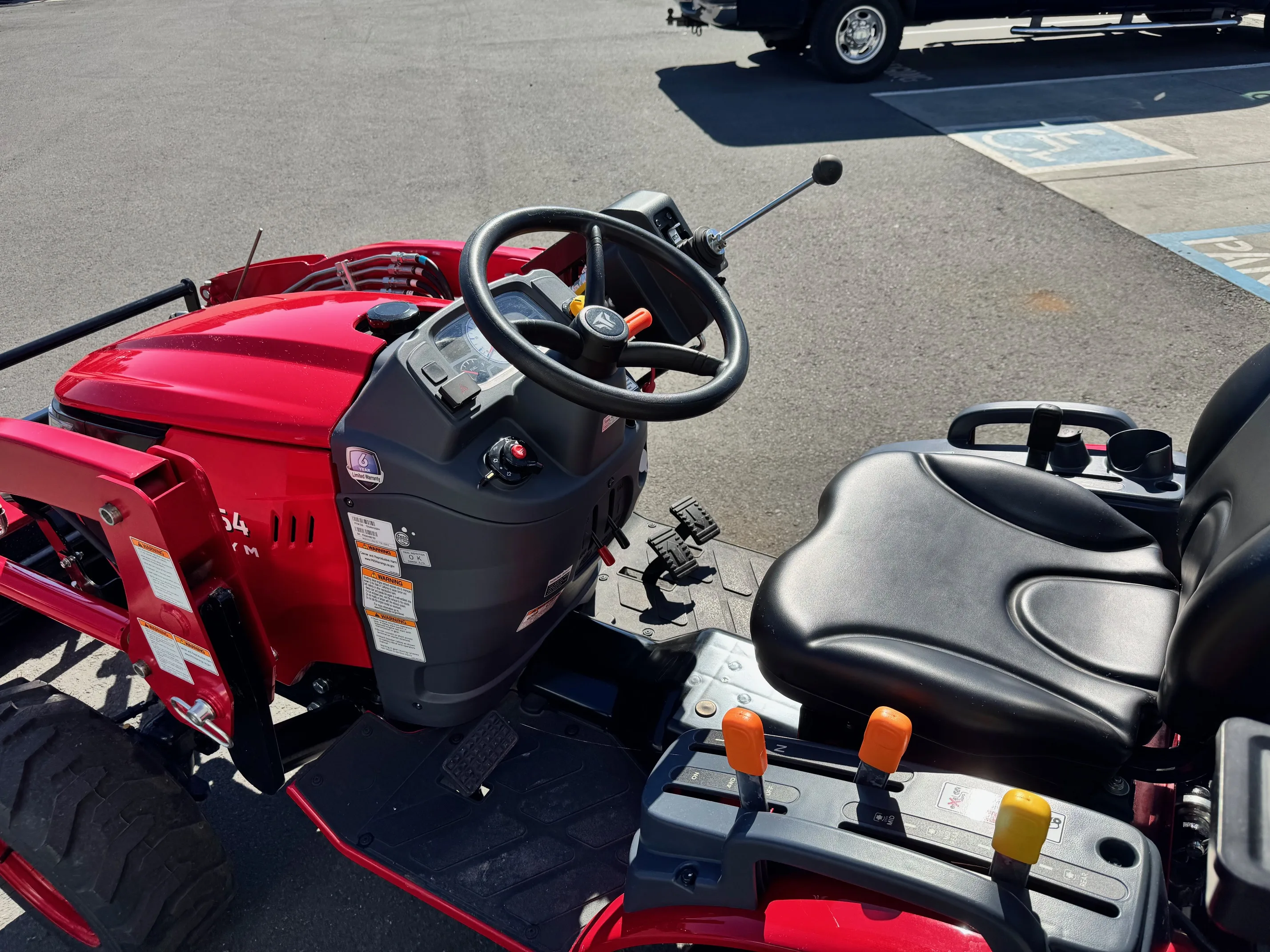

A wide operator cabin with a flat floor offers good visibility and ample leg room, promoting comfortable operation. All controls are within arm’s reach, including a dial to control the cutting height of the mid-mount implement. The accelerator, brake pedal, differential lock, and parking brake are easily accessible on the floor of the cabin, located precisely where you expect them to be. These features make this tractor easy to operate, even for novice drivers.

The Japanese made Yanmar engine offers more torque with less revs compared to competitors in its class. Since it is water cooled, the engine warms up faster and stabilized temperature more effectively while the tractor is running. The engine is also Tier 4 certified, including for noise emission standards.

closeup of the japanese made yanmar engine

Accompanied by the power steering, the responsive 2-range hydrostatic controls on this tractor ensures a smooth ride. It reduces the need for operator effort, particularly while operating the optional front-end and rear implements.

closeup of the 2-range hydrostatic controls

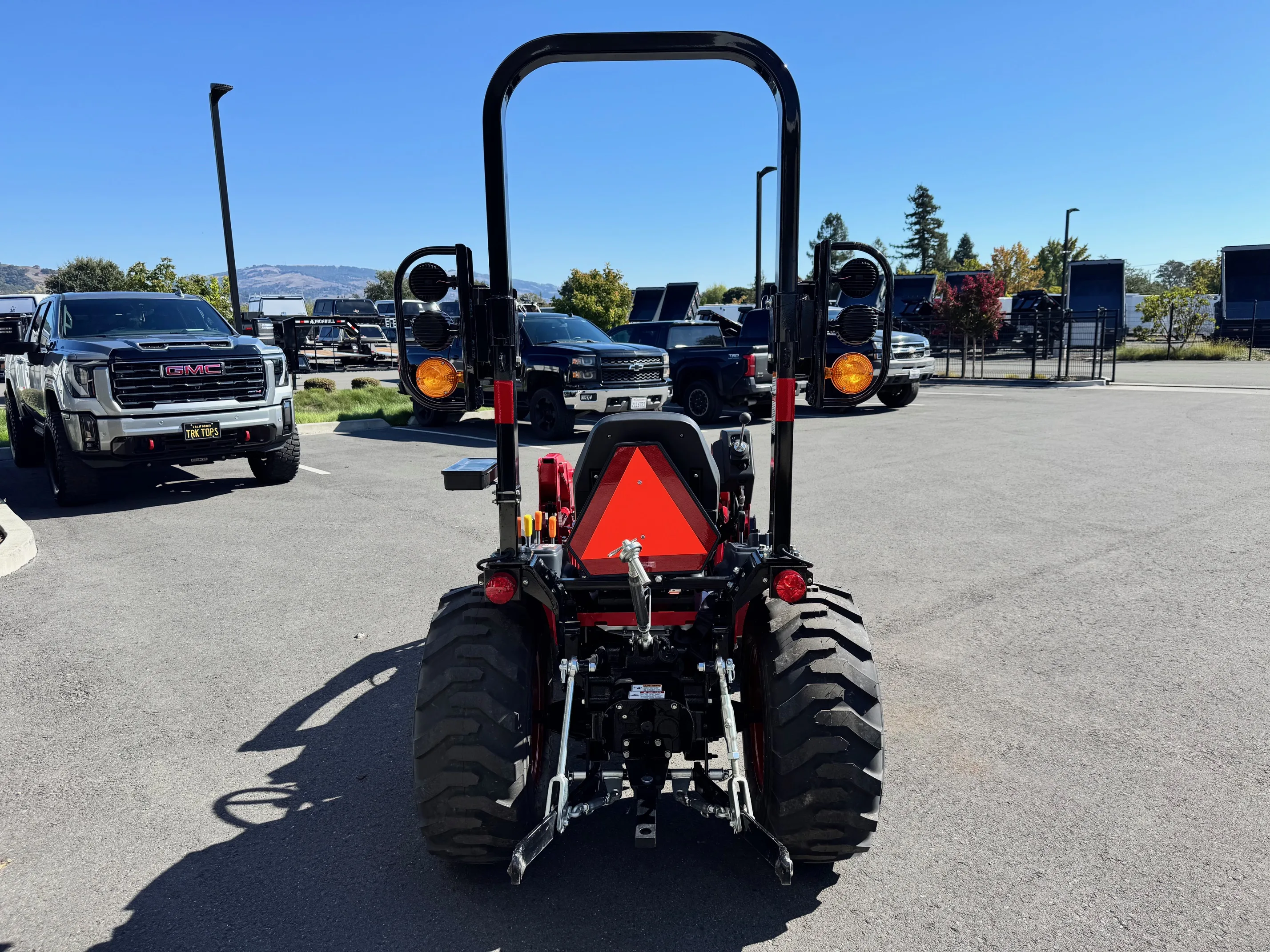

The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joint. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive ground engagement like slashing or digging.

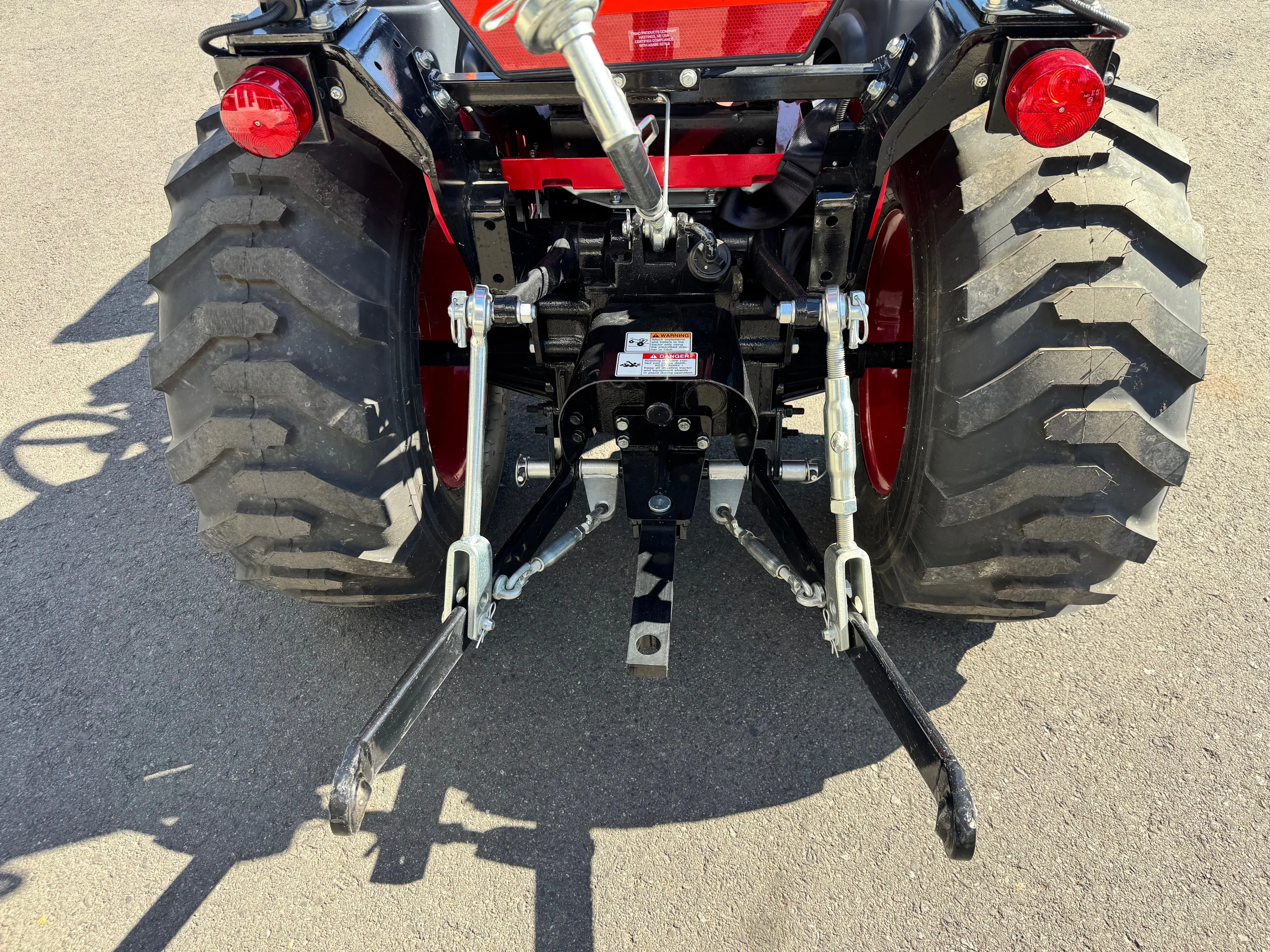

closeup of the 3-point rear linkage

The mid-mount linkage on the tractor allows easy installation for a mower up to 54 inches wide. Cutting height can be adjusted easily during operation using the dial on the operator console, so patches of overgrowth can be tackled more efficiently.

mid-mount linkage controls on the TYM T224 Tractor

The Roll Over Protective Structure (ROPS) of the tractor is designed to be folded, allowing for easy storage in low-ceiling garages or sheds.

operator demonstrating the foldability of the TYM T224 Tractor's ROPS

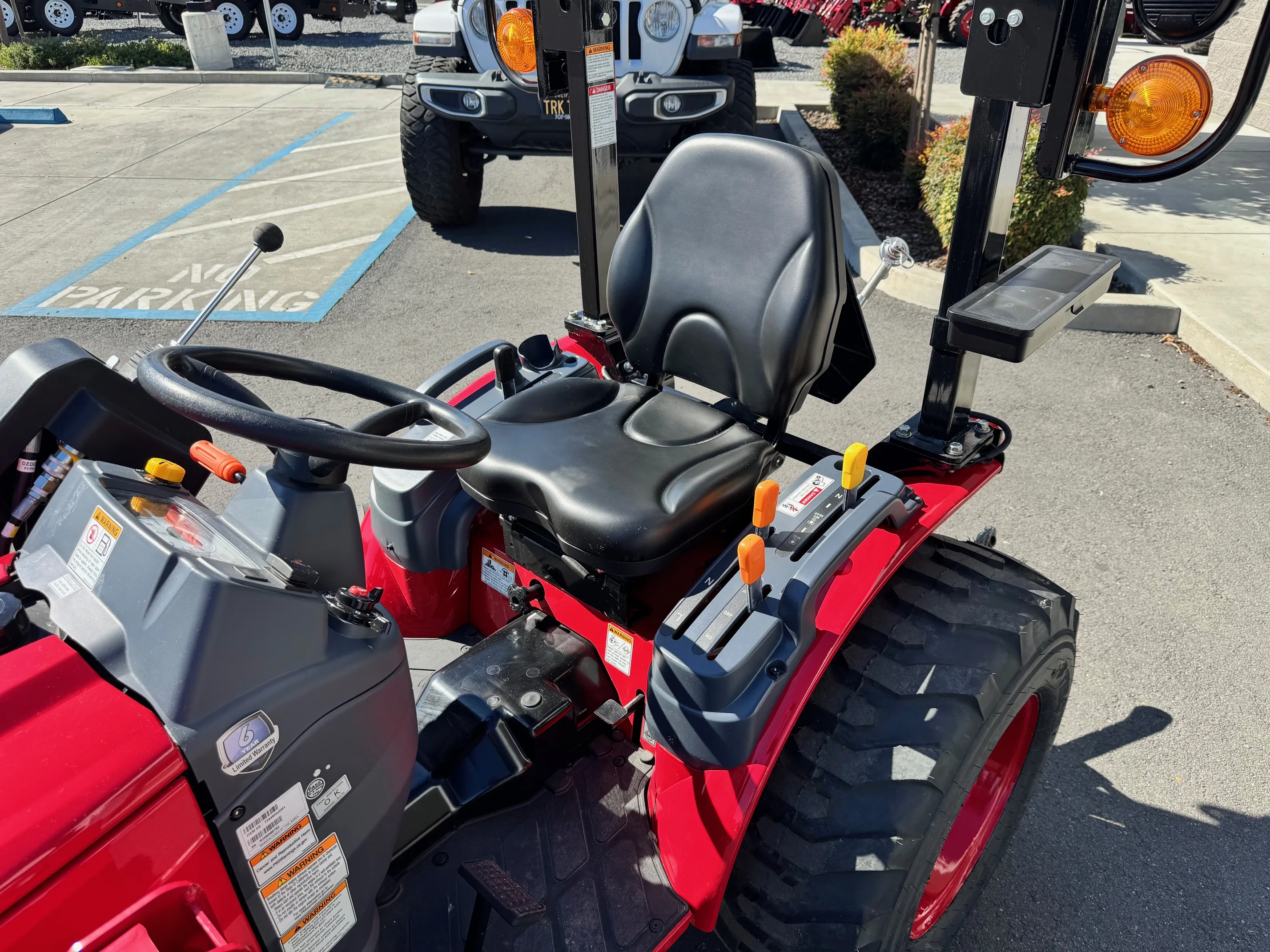

Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed.

operator using the dedicates PTO lever

Responsive hydrostatic controls offers a smooth ride for operators, from the forward and reverse pedal to the powered steering wheel. These controls reduce the need for operator effort during a range of tasks, particularly while operating the optional front-end loader.

the TYM T254 Tractor's hydrostatic controls

TYM T254 Tractor Engine

Engine manufacturerYanmar 3TNV80F
TypeNatural Aspiration
Gross engine power23.9 hp | 17.8 kW
PTO power18.8 hp | 14.0 kW
Rated engine speed3000 rpm
No. of cylinders3
Displacement77.3 cu. in.
Air cleanerSingle Dry
Alternator12V, 40A
Fuel systemIDI

Powertrain

Transmission typeHST
No. of speedsInfinite 2-range
Max. traveling speed11.0 mph
BrakesWet Disc
SteeringHydrostatic
ClutchDry Single Plate

Hydraulic System

Pump typeSingle Gear Pump
Implement flow4.18 gpm
Steering flow2.77 gpm
Total flow6.95 gpm
Category, 3-point hitchI (N)
Hitch lift capacity1214 lb
Loader Lift Capacity948 LBS
Hitch lift capacity at 24 inches behind link ends1101 lb
Lift control typePosition
No. of standard remote valvesOptional (1)

PTO

PTO typeTransmission PTO w/ ORC/Independent
PTO controlElectric/Hydro
PTO rear540 rpm

Capacities

Fuel tank5.81 gal
Coolant3.8 qt
Crankcase2.9 qt
Transmission/Hydraulics system3.7 gal
Front axle3.7 qt

TYM T254 Tractor Dimensions & Weights

Overall length with 3-point hitch100.5 in.
Overall width45.8 in.
Wheelbase57.5 in.
Height to top of ROPS91.3 in.
Min. ground clearance9.4 in.
Min. turn radius with brakes88.58 in.
Min. turn radius without brakes100 in.
Weight with ROPS1638 lb

Tires

R3 Turf – FrontTurf Master 20×8.00-10 NHS TL 4PR
R3 Turf – RearMulti-Trac CS 29×12.50-15 NHS TL 4PR
R4 Industrial – FrontTrac Chief 20×8.00-10 NHS TL 4PR
R4 Industrial – RearTrac Chief 27×12.5-15 NHS TL 4PR
R4 Large Industrial – FrontTrac Chief 27×12.5-15 NHS TL 4PR
R4 Large Industrial – RearTrac Chief 27×12.5-15 NHS TL 4PR
