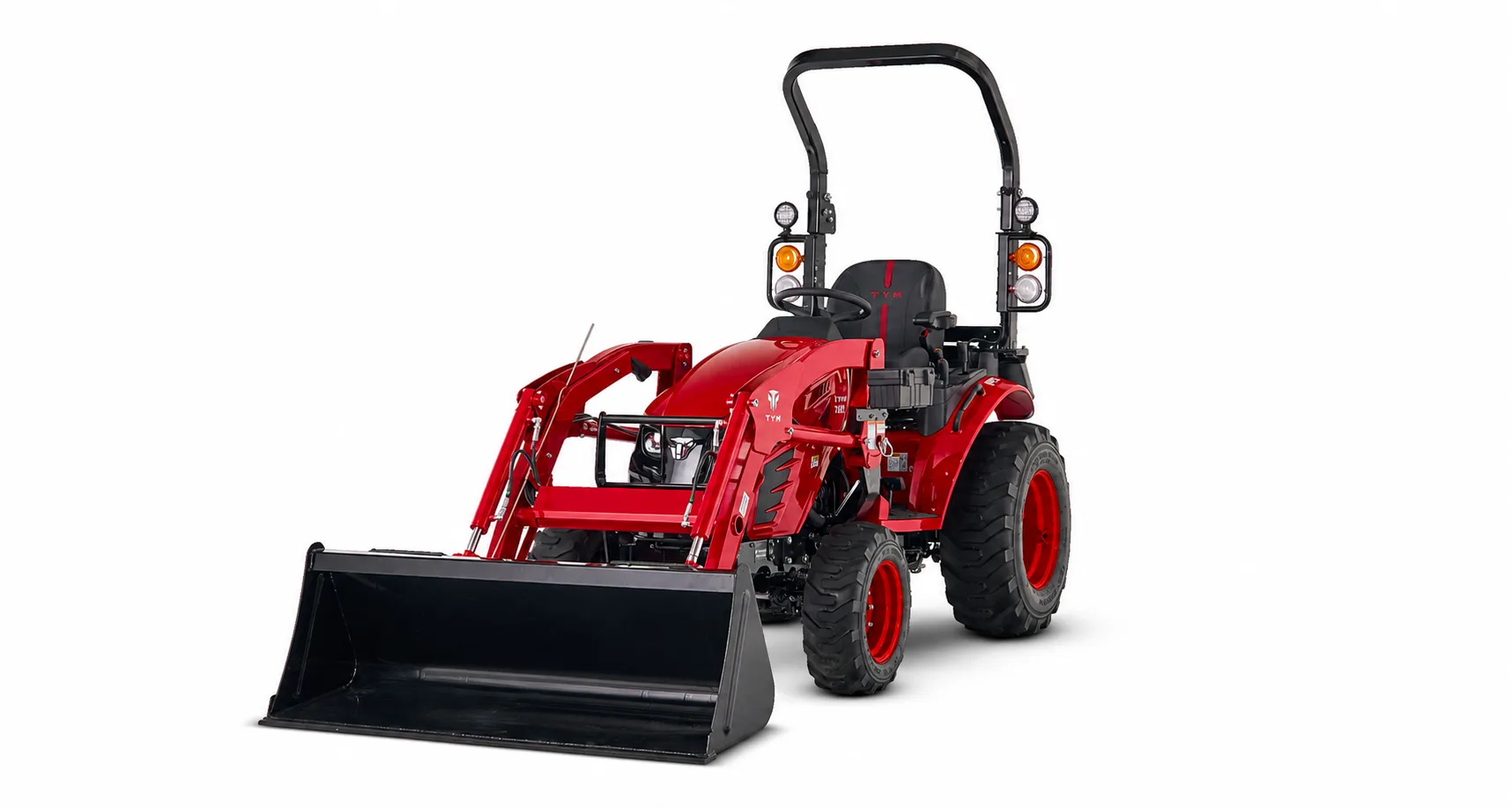

TYM T474H Tractor

By TYM

SKU: TYMT474HTL
$28,250.00

*Cash/Check Discounts available depending on the Model of Tractor – Credit Card Fee Applies. Contact store for details

Includes Tractor & Quick Attach Loader. Take on harder tasks in smaller spaces with the T474, proven to be durable and engineered to be efficient. This tractor is a workhorse that is easy to control in greenhouses, orchards, and more. Meet the premium Series 2 tractor that can do it all. This tractor is the…

Available

Contact Our Locations

Product Help Tractor Credit Application
Part
Compact Tractors, Tractors and Implements
Brand
TYM
Prop 65 Warning

California Residents:  Prop 65 WARNING

Additional Information

Includes Tractor & Quick Attach Loader.

Take on harder tasks in smaller spaces with the T474, proven to be durable and engineered to be efficient. This tractor is a workhorse that is easy to control in greenhouses, orchards, and more.

Meet the premium Series 2 tractor that can do it all. This tractor is the perfect fit for spacious lawns and tricky landscape jobs that require detailed work in tight spaces. The deluxe adjustable flip seat is designed with your comfort in mind. Hydro-Max HST transmission with auto throttle encourages easy maneuverability, while the dual hydraulic pedals ensure smooth operations. The clean EPA Tier 4 engine keeps your emissions in check and removes the need for a DPF filter. The high ground clearance on the tractor makes it an excellent tool for delicate tasks, while the optional front-end loader with an impressive lift capacity ensures that you have all the power you need to tackle the toughest jobs on and off the field. The comfortable suspension seat and ergonomically designed levers and pedals put the driver first, and the optional fully-enclosed easy cabin makes this tractor an ideal choice for all seasons.

Equipped with a powerful, Tier-4 certified 4-cylinder engine, this tractor has an output comparable to utility tractors while maintaining the dimensions of a sub-compact tractor. The durable body and efficient engine come together to perform medium-duty applications efficiently and productively.

In addition to the in-cabin controls, this tractor has an external position lever near the 3-point hitch. This allows operators to adjust an implement position as soon as it is connected, without needing to go to the cabin. This enables quick and convenient switching between implements, enhancing tractor versatility.

Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed.

The tractor hood can be opened in one motion, providing easy access to the engine and other systems for daily checks, routine service and maintenance. The side panel can also be removed easily without the need for specialized tools.

The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joints. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging.

The high capacity fuel tank allows drivers to take on jobs for longer periods without stopping for fuel. This is in addition to the engine, which promotes fuel-efficient operation and increases the time before a refuel.

Engine

Engine manufacturerTYM A2300N2
TypeNatural Aspiration
Gross engine power48.3 hp | 36 kW
PTO power35.9 hp | 26.4 kW
Rated engine speed2600 rpm
No. of cylinders4
Displacement139.5 cu. in.
Air cleanerSingle Dry
Alternator12V, 70A
Fuel systemIDI

Powertrain

Transmission typeMechanical
No. of speedsF12xR12
Max. traveling speed14.9 mph
BrakesWet Disc
SteeringHydrostatic
ClutchDry Single Plate

Hydraulic System

Pump typeDual Gear Pump
Implement flow7.66 gpm
Steering flow4.25 gpm
Total flow11.91 gpm
Category, 3-point hitchI
Loader Lift Capacity2152 lb
Hitch lift capacity2688.8 lb
Hitch lift capacity at 24 inches behind link ends1508.4 lb
Lift control typePosition
No. of standard remote valves1

PTO

PTO typeIndependent
PTO controlElectric/Hydro
PTO rear540 rpm

Capacities

Fuel tank9.0 gal
Coolant6.9 qt
Crankcase6.8 qt
Transmission/Hydraulics system8.5 gal
Front axle8.6 qt

Dimensions & Weights

Overall length with 3-point hitch131 in.
Overall width54.5 in.
Wheelbase69.7 in.
Height to top of ROPS94.5 in.
Min. ground clearance12.8 in.
Min. turn radius with brakes106.7 in.
Min. turn radius without brakes117.5 in.
Weight with ROPS3289 lb
Weight with cab3607 lb

Standard Tires

R1 Agricultural – FrontFarm Specialist 7-16 NHS TL 6PR
R1 Agricultural – RearFarm Specialist 11.2-24 NHS TL 6PR
R3 Turf – FrontMulti-Trac CS 27×8.50-15 NHS TL 4PR
R3 Turf – RearMulti-Trac CS 41×14.00-20 NHS TL 4PR
R4 Industrial – FrontTrac Chief 10-16.50 NHS TL 6PR
R4 Industrial – RearXtra Grip 43×16.00-20 NHS TL 6PR
