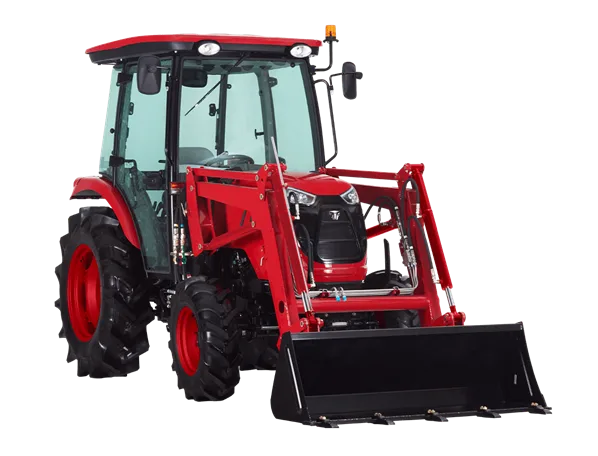

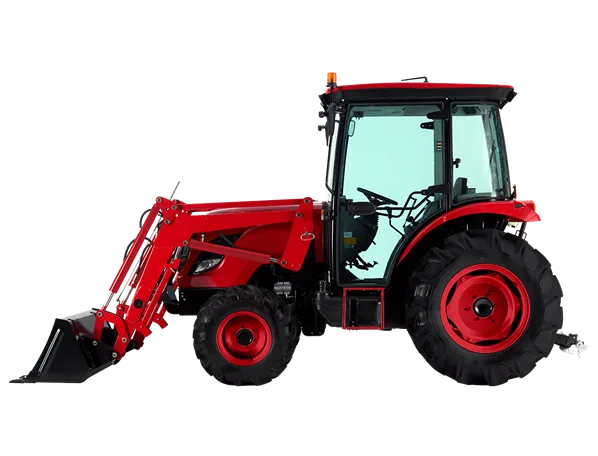

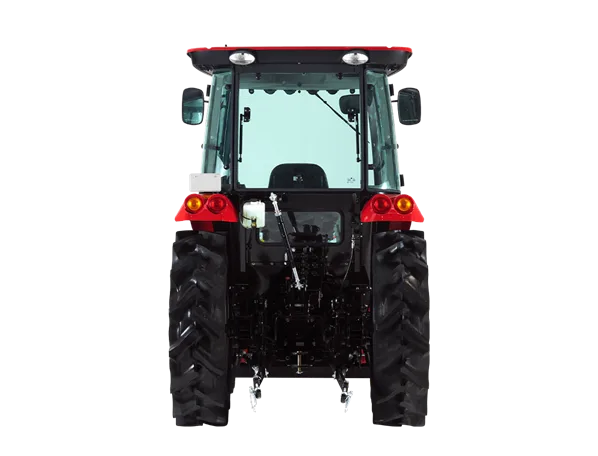

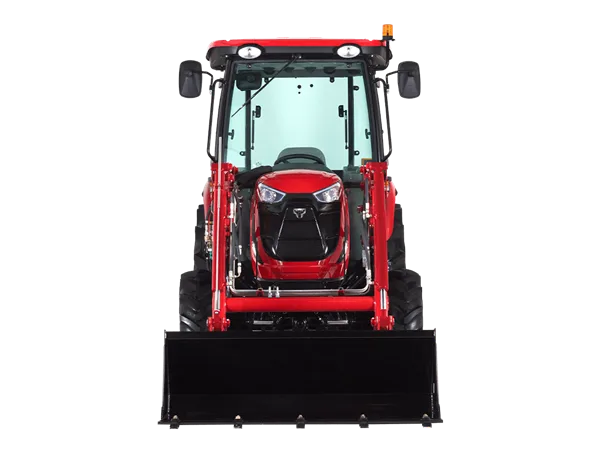

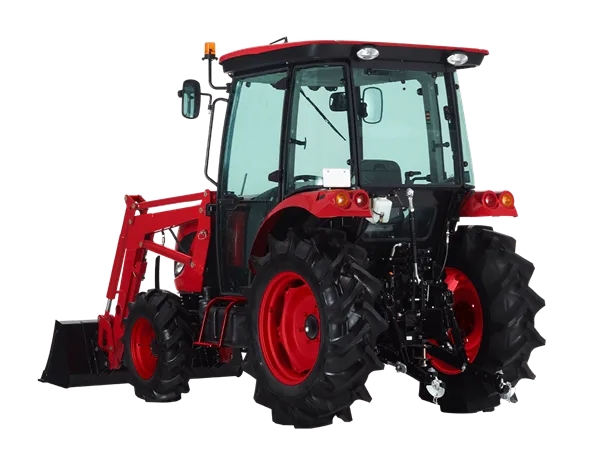

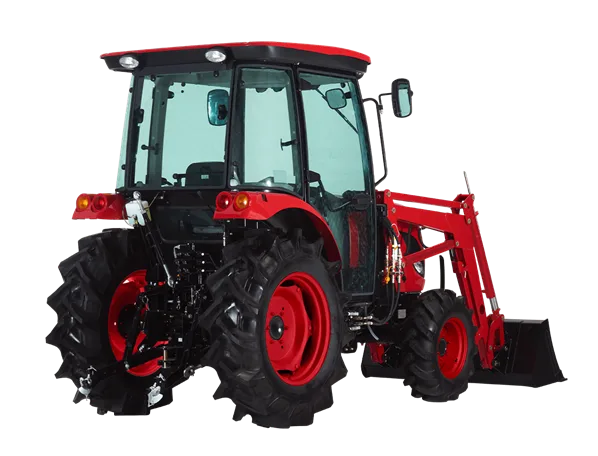

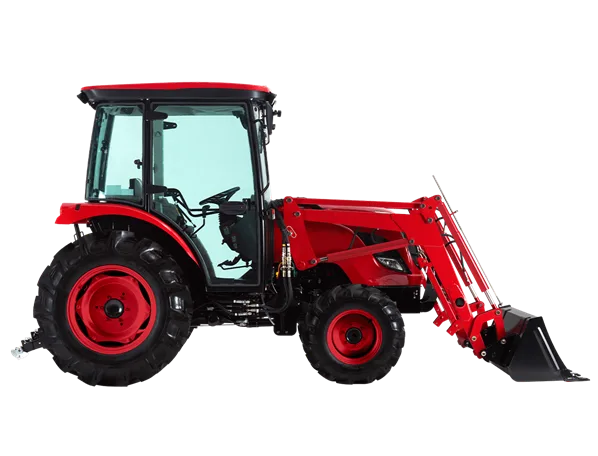

TYM T574CH Cab Tractor

Product Help Tractor Credit Application

Overview

Cash/Check Price – $37,742 – Financing Available

Includes Tractor & Quick Attach Loader

Take on tough jobs in tight spaces with the T574. This tractor brings you the best features from our compact and utility ranges, balancing high power output with maximized maneuverability.

Engineered with telescopic links and stabilizers at the hitch, this tractor is built to attach and swap out rear implements of all sizes quickly and effectively. An external lever near the 3-point hitch further enables quicker implement changes, with the option to adjust the implement as soon as it is connected. This functionality allows operators to shift between tasks easily and work dynamically.

The premium cabin includes modern amenities to enable productivity and comfort for operators, from finer details like Bluetooth-enabled speakers and charging ports to more robust installations like full A/C and heating and cushioned seating.

Telescopic linkages allow implements to be easily connected and swapped out, without needing input from the operator cabin. Stabilizers make it possible for the tractor to adapt to implements of varying loads, without putting too much pressure on the engine productivity.

Equipped with a powerful, Tier-4 certified 4-cylinder engine, this tractor has an output comparable to utility tractors while maintaining the dimensions of a sub-compact tractor. The durable body and efficient engine come together to perform medium duty applications efficiently and productively.

Fully equipped with modern amenities to maximize operator comfort, this tractor is complete with a large cup holder, wireless smartphone charging dock, multiple USB ports to charge personal devices and a bluetooth speaker. These features are designed to promote productivity, keeping drivers hydrated, connected and alert during every job.

The heavy duty 4WD front axle allows the tractor to lift heavy loads and tow large implements. Powerful hydraulics support the power steering system, which benefits from a dual action mechanism using a hydraulic cylinder and tandem type hydraulic pump.

Allowing for versatile implement handling, this tractor comes ready with a 3rd function installation kit. It can maximize the use of a bucket implement with 4-in-1 functionality, including lifting, tilting, dumping and grappling.

The hood of the tractor can be easily opened, allowing quick access to the engine and other systems for daily checks, routine service and maintenance. These help increase the durability of the tractor.

Engine

Engine manufacturerTYM A2300T3
TypeTurbo
Gross engine power55 hp | 41 kW
PTO power44.7 hp | 32.9 kW
Rated engine speed2600 rpm
No. of cylinders4
Displacement139.5 cu. in.
Air cleanerDual Dry
Alternator12V, 70A
Fuel systemIDI

Powertrain

Transmission typeSync Shuttle
No. of speedsF8xR8
Max. traveling speed18.45 mph
BrakesWet Disc
SteeringHydrostatic
ClutchDry Single Plate

Hydraulic System

Pump typeDual Gear Pump
Implement flow7.66 gpm
Steering flow4.25 gpm
Total flow11.91 gpm
Category, 3-point hitchI
Front Loader Capacity 2790 lb
Hitch lift capacity3822 lb
Hitch lift capacity at 24 inches behind link ends3057 lb
Lift control typePosition/Draft
No. of standard remote valves2

PTO

PTO typeIndependent
PTO controlElectric/Hydro
PTO rear540 rpm

Capacities

Fuel tank17.0 gal
Coolant6.9 qt
Crankcase6.8 qt
Transmission/Hydraulics system9.2 gal
Front axle10.5 qt

Dimensions & Weights

Overall length with 3-point hitch141.3 in.
Overall width63.8 in.
Wheelbase76.2 in.
Height to top of ROPS102.1 in.
Min. ground clearance13.8 in.
Min. turn radius with brakes121.2 in.
Min. turn radius without brakes131.5 in.
Weight with ROPS3887 lb
Weight with cab4233 lb

Standard Tires

R1 Agricultural – FrontFarm Specialist 9.5-16 NHS TL 6PR
R1 Agricultural – RearFarm Specialist 14.9-24 NHS TL 6PR
R3 Turf – FrontMulti-Trac CS 27×10.50-15 NHS TL 4PR
R3 Turf – RearMulti-Trac CS 44×18.00-20 NHS TL 4PR
R4 Industrial – FrontTrac Chief 12-16.5 NHS TL 6PR
R4 Industrial – RearXtra Grip 16.9-24 NHS TL 6PR
